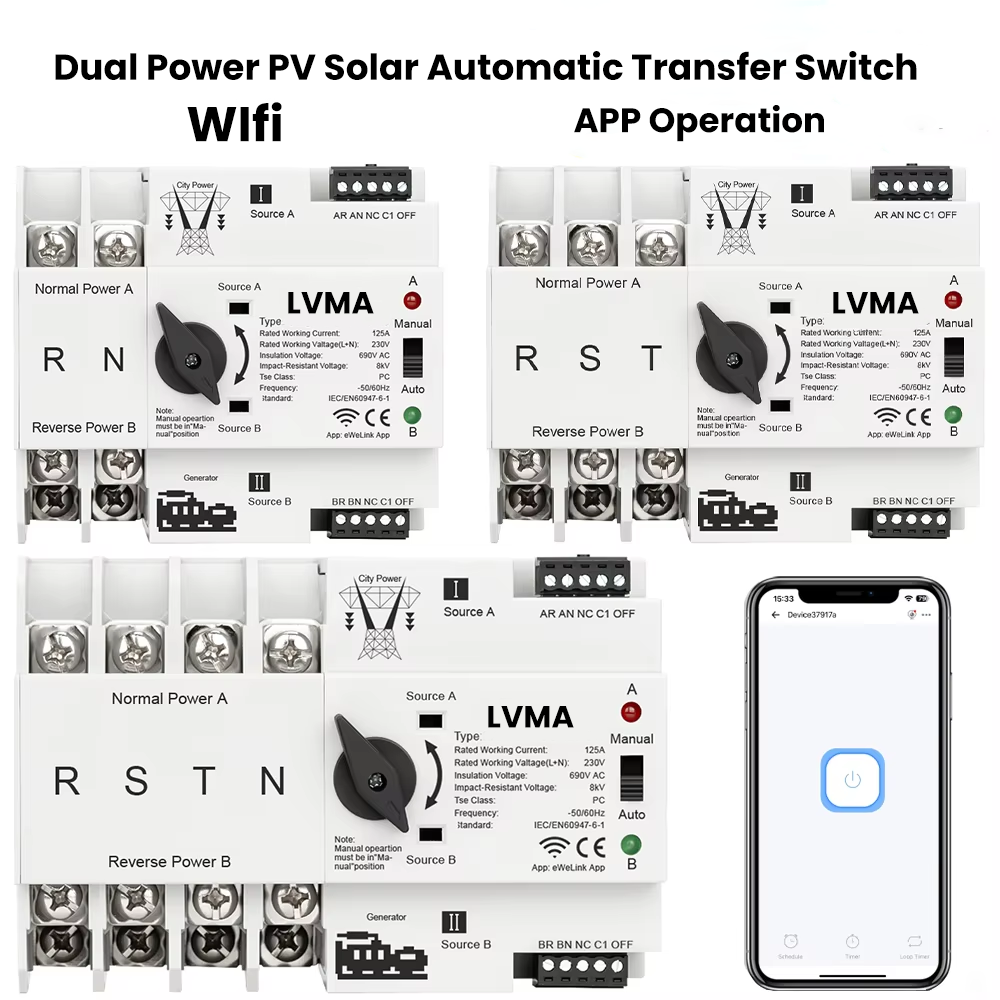

Wifi ATS 125A, Automatic Transfer Switch 2P 3P 4P LMQ4-125W

WI-FI automatic switch support remote control, the user through the mobile APP, no matter where you are at any time to control the switch state, but also with the smart home linkage to set the scene mode. At the same time with real-time monitoring function, can timely feedback the status of electricity. When the main power supply fails, it can automatically switch to the standby power supply, and then switch back after recovery to ensure stable power consumption.

product details

LMQ4-125W Series dual power automatic transfer switches are newly developedminiature household power transfer switches. This switch is mainlyused to test whether the normal or standby power supply is normal.When the normal power supply is abnormal, the backup power supplywill work immediately to ensure the continuity, reliability and safety ofthe power supply. This product is specially designed for home trackTV installation and is specially used for Pz30 distribution box.
LMQ4-125W Series of automatic transfer switches are suitable for emergencypower system 400v,60A with AC rated current of 50v or 60Hz.compact structure,reliable conversion,easyinstallation andmaintenance. long life.It is widely used in various occasions wherecontinuous power failure is not allowed. It can be operated electricallyor manually by ATS, and the controller .

Main Technical Parameters

Model	LMQ4-125W
Rated current le A	10	16	20	25	32	40	50	63	80	100	125
Insulation voltage Ui	AC 690V
Rated voltage Ue	2P:AC230V 3P:AC400V 4P:AC400V
Grade	Grade PC:able to male and withstand , not to break short-circuitcurrent
Use category	AC -33iB
Pole	2P				3P				4P
Weight ( kg )	0.62				0.72				0.91
Life	Electrial :2000times; Mechanical :5000times
Rated conditional short - circuit current lq	50kA
SCPD ( fuse )	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us :AC220V,50Hz Correct working condition 85%Us-110%Us
Auxiliary circuit	AC220V/AC110V50/60HZ
Contact transter time	<50ms
Operating transfer time	<50ms
Return transfer time	<50ms
Off - time	<50ms
Temperature range	-5'C ~+40'C average temperature not more than 35'C in 24 hours

Working conditions

Wifi Ats,Automatic transfer switch 2P 3P 4P 125A LMQ4-125W

Automatically switch between grid and generator (solar, wind or diesel generator)

In the absence of power, the switch automatically switches to the generator (source B) , and once the power is restored, the switch automatically switches to the grid (source a) .

Characteristics:

Easy to install and operate

Ultrafast transmission system

35 mm DIN rail mount (standard circuit breaker box)

Switch indicating the source of power supply

Automatic and manual switches

Technical specifications

Model Name：LMQ4-125W/4-125A

Operating Voltage: 220V

Pole number: 2P,3P,4P

Frequency: 50-60 Hz

Maximum load: 125A

Transmission time: 8 milliseconds

Life expectancy: 50,000 acionamentos

ATSE Class：PC

Operating Temperature: -5 ~ + 40 °C

Circuit failure: UIMP 8KV

Note:

The switch can not switch the generator directly

When the switch is in the"Automatic" position, the device will automatically switch between normal and standby power.

If the main power supply is insufficient, the switch will automatically switch to the"Standby" mode, once restored to the main power supply, the switch will automatically recover.

In the manual option, you can change the power supply manually.

The items included are evaluated for warranty

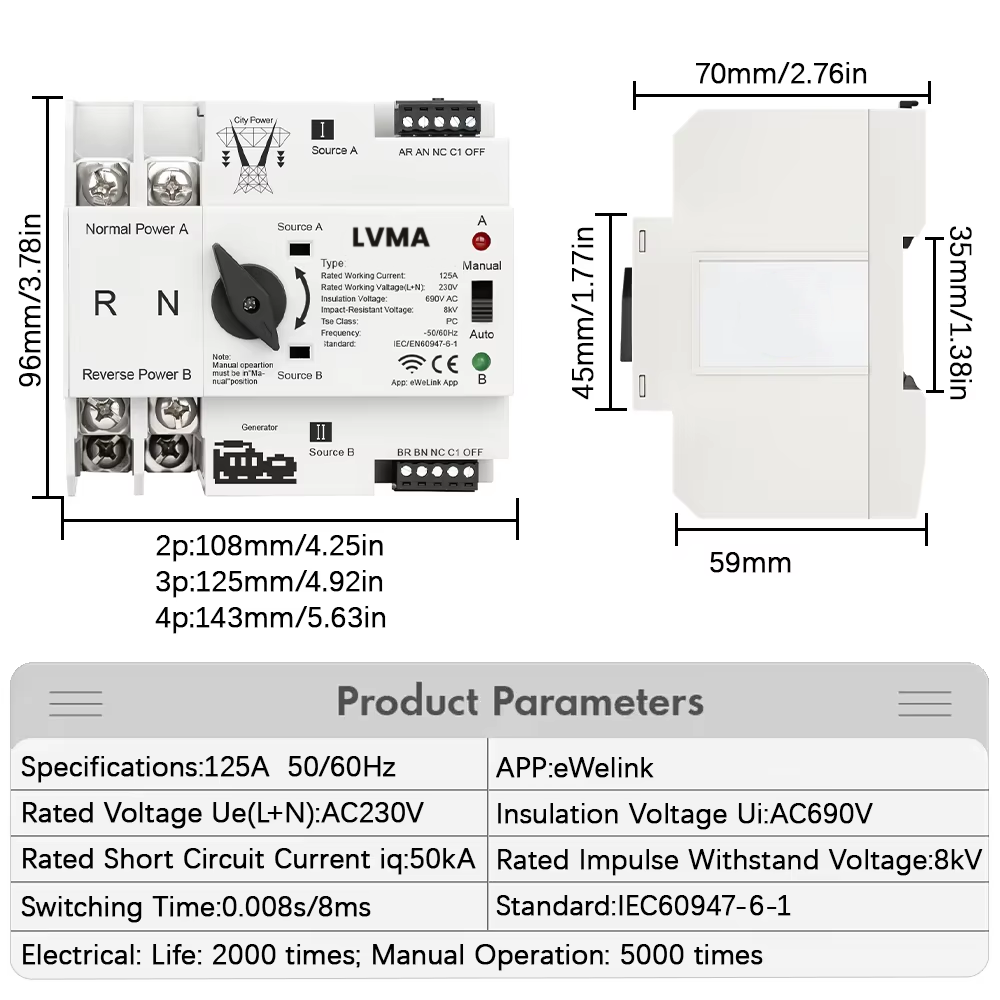

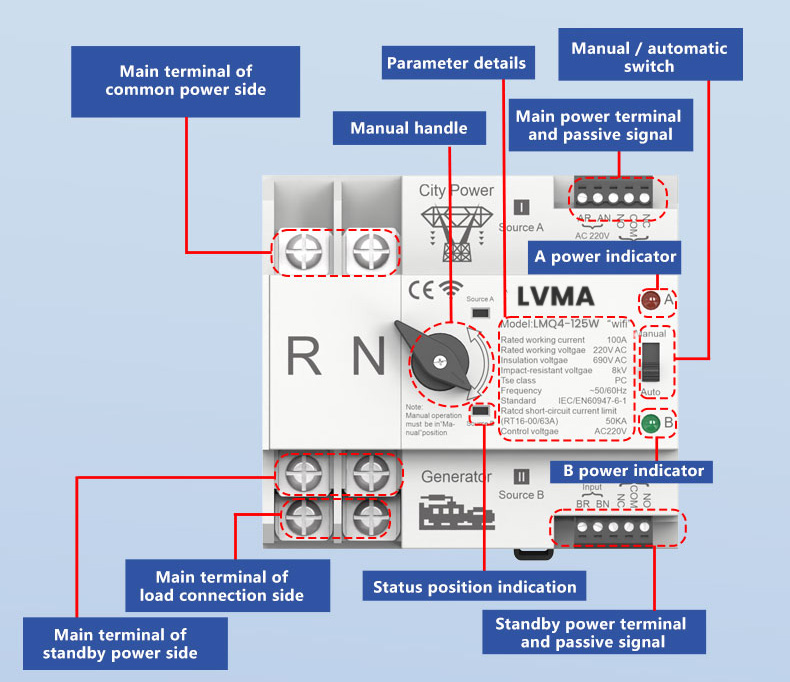

Structure and Mounting

Wifi Ats

4-copy-2

Wifi ATS 125A, Automatic Transfer Switch 2P 3P 4P LMQ4-125W

Main Technical Parameters

Working conditions

Structure and Mounting
