Installation and Operation Guide for Dual Power Manual Transfer Switches

2026-02-06

A Dual Power Manual Transfer Switchis a critical component in electrical systems where uninterrupted power supply is required. It allows operators to manually switch loads between a primary power source and a backup source, such as a generator or an alternative utility feed. Compared with automatic solutions, Manual Transfer switches offer high reliability, straightforward structure, and cost-effective performance, making them widely used in commercial buildings, industrial facilities, and infrastructure projects.

This guide provides a comprehensive overview of installation requirements, wiring methods, operating procedures, and maintenance practices to ensure safe and reliable operation.


1.Pre-Installation Requirements and Safety Precautions

Before installing a dual power manual transfer switch, it is essential to confirm that the device’s rated voltage, current, and frequency match the system requirements. Phase configuration (single-phase or three-phase) must also be verified to avoid operational incompatibility.

Safety precautions are mandatory. All power sources must be fully isolated before installation, and lockout/tagout procedures should be applied to prevent accidental energization. Installers should wear appropriate personal protective equipment (PPE) and strictly follow local electrical regulations. The installation environment should be dry, well-ventilated, and free from corrosive gases or excessive vibration.


2.Step-by-Step Installation Process for Dual Power Manual Transfer Switches

Installation typically begins with secure mounting. Depending on the design, the switch may be panel-mounted or installed inside a distribution cabinet. The mounting surface should be flat and mechanically stable to prevent misalignment during operation.

After mounting, identify the main power source, backup power source, and load terminals clearly. Connect the incoming power cables according to the manufacturer’s terminal markings, followed by the load-side connections. All terminals should be tightened to the specified torque values. Once wiring is completed, conduct a mechanical operation check to ensure smooth switching without obstruction.

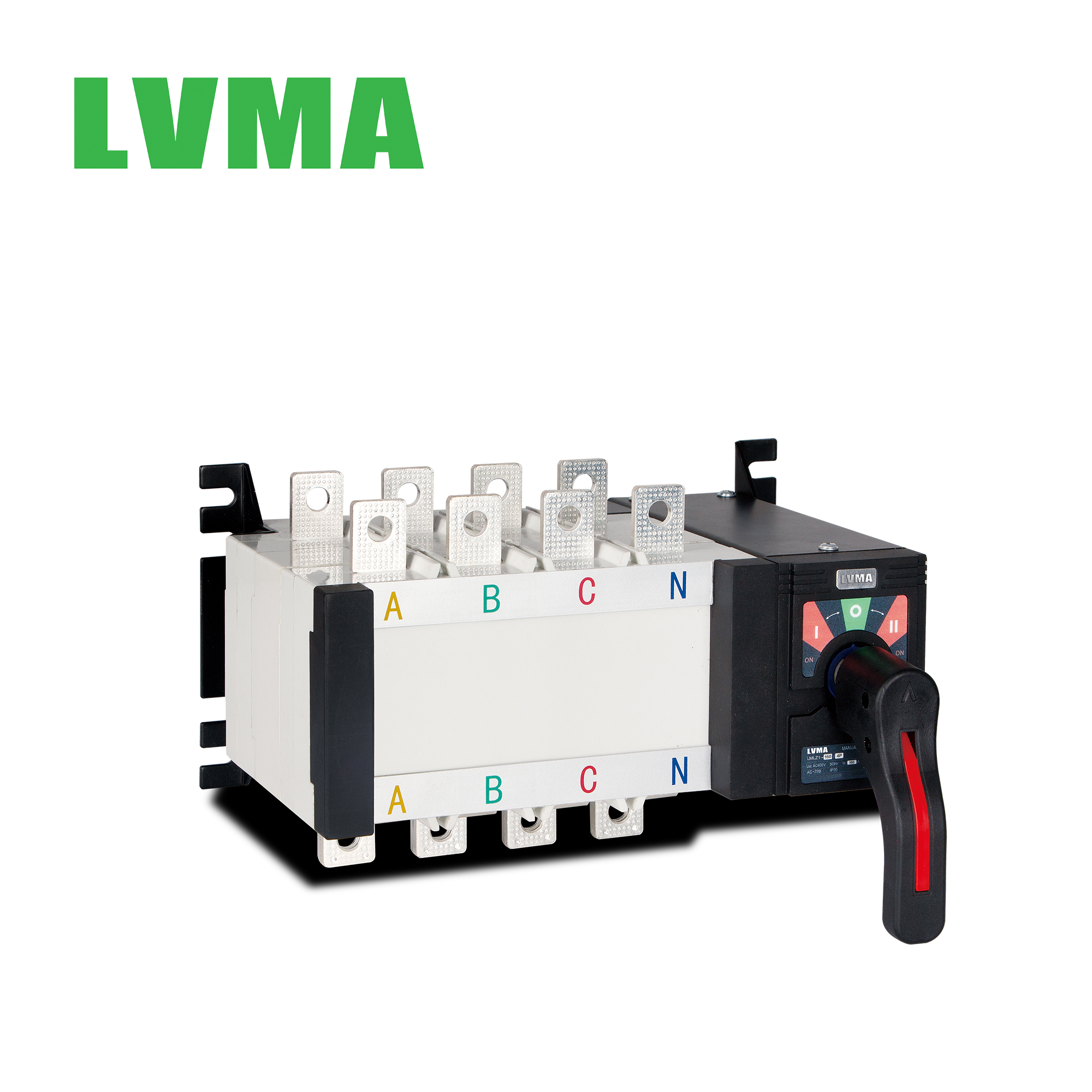

GLZ1 160A-1.jpg

3.Wiring Methods and Common Connection Diagrams

Correct wiring is essential for safe operation. For single-phase systems, the switch generally connects line and neutral conductors, while three-phase systems require precise phase sequence alignment. Neutral conductors should be handled according to system design, and protective grounding must always be connected securely.

Common wiring diagrams include utility-to-generator configurations and dual-utility source systems. Errors such as reversed phase sequence, loose terminals, or incorrect grounding can result in equipment damage or unsafe conditions, so a final inspection is strongly recommended before energizing the system.


4.Manual Operation Procedures and Switching Sequence

Under normal conditions, the switch remains connected to the primary power source. When the main power fails or requires maintenance, the operator should first confirm that the backup source is stable and within rated parameters.

Switching should be performed in a clear, deliberate sequence. A Dual Power Manual Transfer Switch is designed to ensure that the load is disconnected from one source before being connected to the other, preventing parallel power supply and potential short circuits. After the main power is restored, the switch can be manually returned following the same safe procedure.


5.Routine Inspection, Maintenance, and Troubleshooting Tips

Routine inspection helps maintain long-term reliability. Operators should periodically check mechanical components, contact condition, and terminal tightness. Any signs of overheating, discoloration, or abnormal noise should be addressed immediately.

Maintenance typically involves cleaning dust from contact areas and verifying smooth mechanical operation. If switching feels stiff or inconsistent, lubrication or component replacement may be required. Proper documentation of inspections and maintenance activities is recommended to ensure that the Dual Power Manual Transfer Switch continues to operate safely over its service life.


Conclusion

Correct installation and operation of a dual power manual transfer switch are essential for ensuring power continuity and system safety. By following standardized installation procedures, proper wiring practices, and routine maintenance schedules, users can significantly enhance system reliability and operational lifespan. This makes manual transfer switches a dependable solution for many critical power applications.


Frequently Asked Questions (FAQ)

Q1: What is the main advantage of a manual transfer switch compared to an automatic one?
A manual transfer switch offers a simpler structure, higher mechanical reliability, and lower cost, making it suitable for applications where automatic switching is not required.

Q2: Can a manual transfer switch be used with a generator?
Yes, it is commonly used to switch loads between utility power and generator power in commercial and industrial systems.

Q3: Is professional installation required?
Yes. Installation should always be performed by qualified electricians to ensure compliance with electrical standards and safe operation.

Q4: How often should maintenance be performed?
Routine visual inspections are recommended every 6–12 months, with detailed checks based on operating conditions and switching frequency.

Q5: Can two power sources be connected at the same time?
No. Properly designed manual transfer switches mechanically prevent simultaneous connection, ensuring electrical isolation between power sources.
