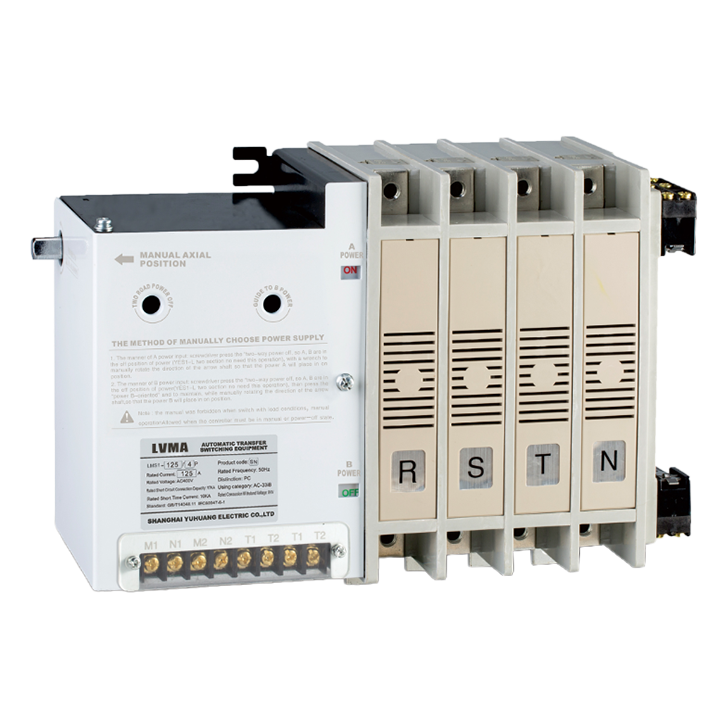

LMS1-SN Series Automatic Transfer Switch ATS 400A

Model Name: LMS1-SN

Rated Voltage: AC 230A，AC 400V

Rated Current: 16A-630A

Pole: 2P，3P，4P

Product Category: PC Class

Features: 3 Position

Drive Mode: Excitation type

Certification: CE, CB, CCC

Standard: IEC 60947-6-1

Email: sale@lvma-ele.com

product details

LMS1-SN Series PC class dual power Auto transfer switch, mainly used in two way power supply system with rated voltage below 400V, AC 50/60Hz, rated current up to 630A, when one power supply abnormal, then it transfer between two power supply system, to ensure the power supply reliability and safety.

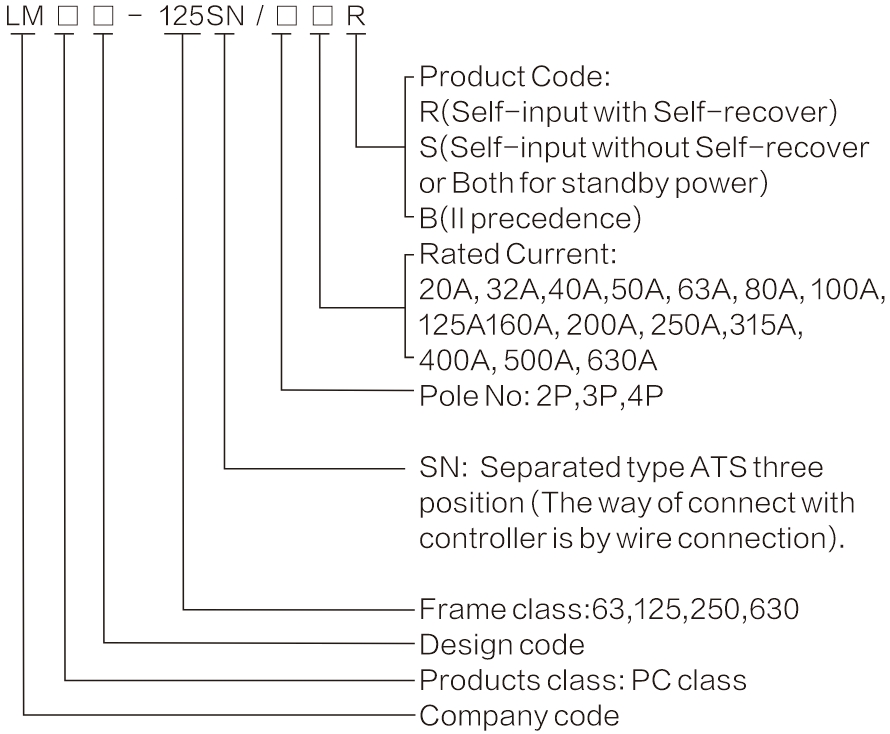

Model Description

automatic-transfer-switch-14

Notice：

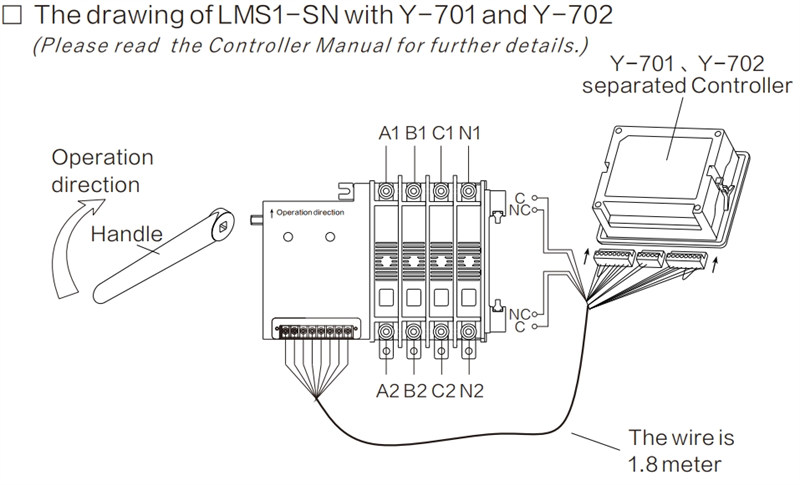

1. Separated type ATS can be chose Y-701(LED) or Y-702(LCD) Controller .

2. ATS without output signal to start generator,Y-701 and Y-702 controller with it.

Working Environment

□ Ambient air temperature: ambient temperature -5℃ to +40℃, and the 24-hour average temperature value does not exceed Over +35°C. Users whose ambient air temperature is higher than +40°C or lower than -5°C should consult with the manufacturer.

□ The highest temperature of atmospheric humidity: when the degree is +40℃, the relative humidity does not exceed 50%, and the maximum relative humidity per month Degree 90%, resistant to the influence of humid air on the sea, and can allow higher relative humidity at lower temperatures , special measures should be taken for the occasional condensation caused by temperature changes.

□ Installation altitude: The altitude of the installation site does not exceed 2000 meters. When used at higher altitudes, the dielectric strength and cooling effect of the air should be considered to be reduced, please consult with the manufacturer.

□ Pollution level: The environmental pollution level of the installation site is level 3 .

□ Installation category: IV .

□ Installation inclination: the product is fixedly installed in the cabinet, the maximum inclination is ±22.5° .

□ Arcing distance: The arcing distance is 30mm when AC 400V. The arcing distance when AC 690V is 60mm.

Main Technical Parameters

Model Name			LMS1-SN
Insulation voltage			AC 690V
Rated voltage			AC 400V
Rated current			20A~125A	160A~250A		315A~630A
Rated impulse withstand voltage			8kV
Kind of throw			Double throw
Wiring method			Front board
Short-time resistance current			10kA
Through to breaking capacity			17kA
Transfer time	A Power	Input	80ms		80ms		100ms
		Break	30ms		30ms		30ms
	B Power	Input	100ms		100ms		120ms
		Break	30ms		30ms		30ms
Electrical Life			1000				1000
Mechanical Life			5000				4000
Use type			AC-33ib
Accessaries			Manual handle

Structure and Mounting Dimensions
