LMS1-LA3 Series Automatic transfer switch ATS 630A

Model Name: LMS1-LA3

Rated Working Voltage: AC230V，AC400V

Rated Working Current: 16A-630A

Pole: 2P，3P，4P

Rated Insulation Voltage: AC 690V

Frame Class: 63,125,250,630

Rated Frequency: 50Hz

Product Category: PC Class

Features: 2 Position,Built-in Ats Controller

Drive Mode: Excitation type

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

Email: sale@lvma-ele.com
rEAD more
Made with insMind-GL 250A -1 拷贝 4
product details

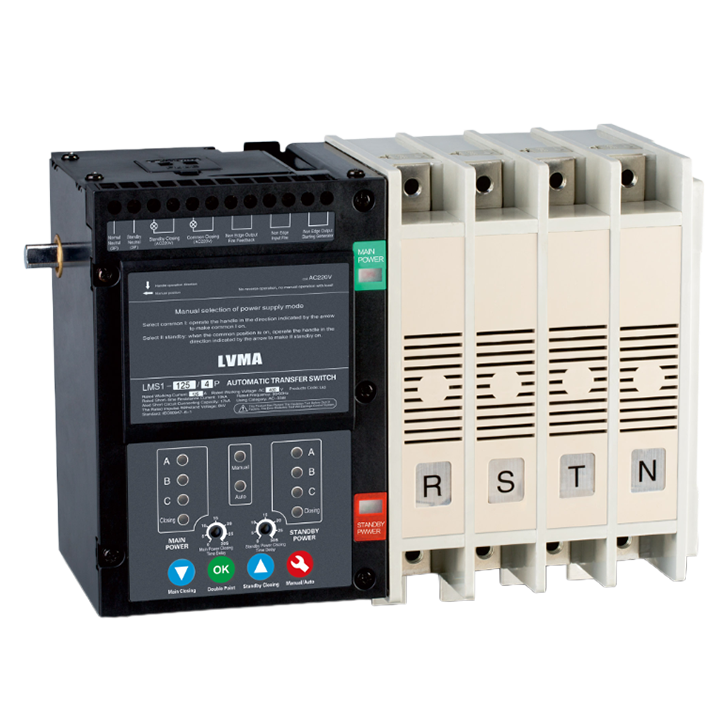

LMS1-LA3 is a PC-level dual power automatic transfer switch, the current specification covers 16A-630A, there are two types of 3p and 4p, the use of isolated switch type structure with motor drive body, for one two-stage design, with good electrical isolation performance, can ensure the safety and reliability when switching power supply.

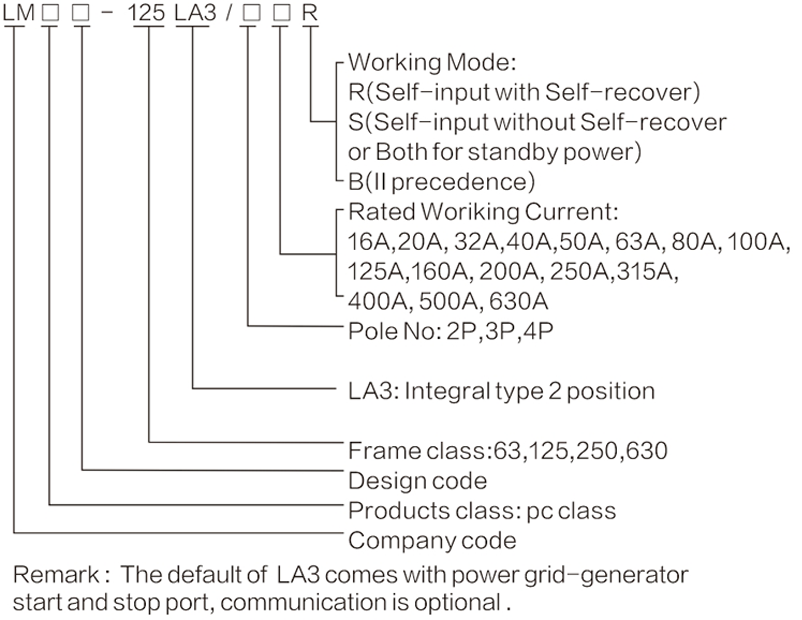

Model Description

22222

Main Technical Parameters

Model Name

LMS1-63LA3

LMS1-125LA3

LMS1-250LA3

LMS1-630LA3

Rated insulation voltage(Ui)

AC 690V

Rated working voltage(Ue)

AC 400V

Rated working current(Ie)

16~63A

20~125A

160~250A

315~630A

Rated concussion withstand voltage(Uimp)

8kV

Using category

AC-33iB

Kind of throw

Double throw

Wiring method

Front board

Poles

2P

3P

4P

2P

3P

4P

2P

3P

4P

2P

3P

4P

Performance

Short- time

resistance current

5kA

10kA

12.6kA

Through to breaking

capacity

10Ie

6Ie

6Ie

Electrical Life/

Mechanical Life

6000/20000

1000/4000

untitled-7-1

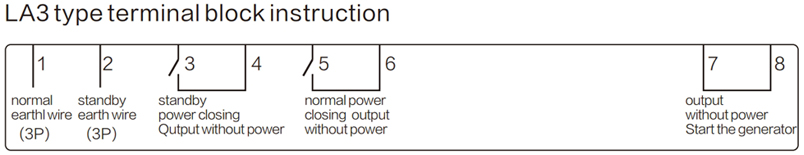

Start generator: when fault occurs in the normal power, this port will connect after delaying some time.
□ Normal close: When the normal power of ATS is in closing state, closing signal without power is output from this port.
□ Standby close: When the standby power of ATS is in closing state, closing signal without power is output from this port.
□ Normal earth wire: When ATS are 3 phases, the normal earth wire is connected into this port.
□ Standby earth wire: When ATS are 3 phases, the standby earth wire is Remark: The normal earth wire and standby earth wire is just suitable for ATS of 3 phases.

Communication port description

□ 485A and 485B: RS485 communication terminal
□ Communication protocol parameters, module address: 1 (range: 1-32, user can set)
□ Baud rate: 9600bps
□ Data bits: 8 bits
□ Parity bit: none
Note: NC is reserved for undefined ports, users are not allowed to connect

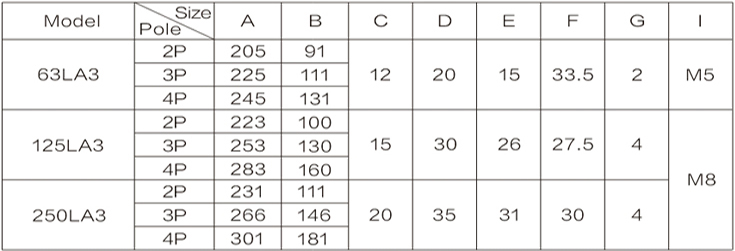

Structure and Mounting Dimensions

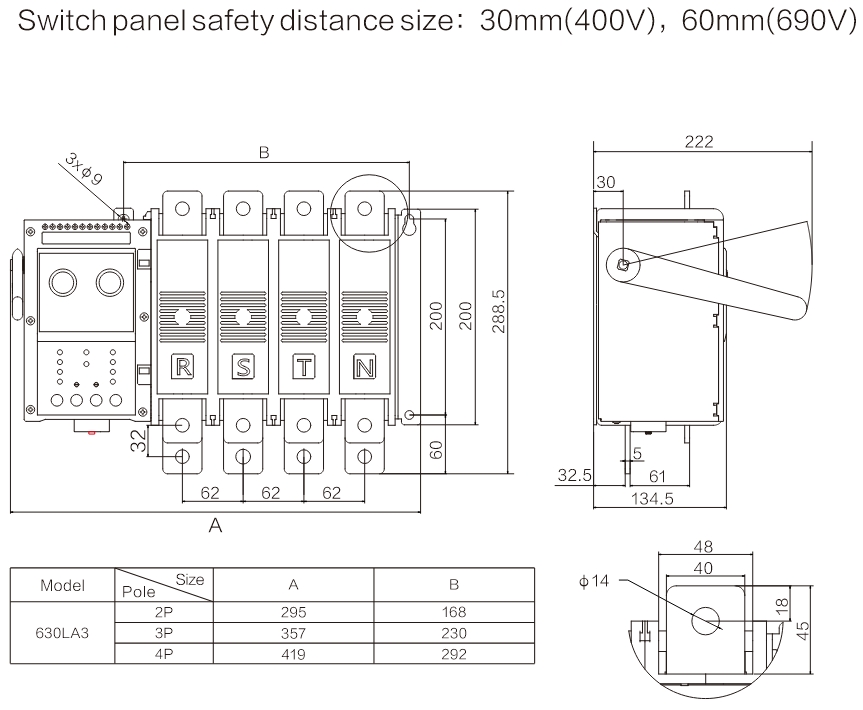

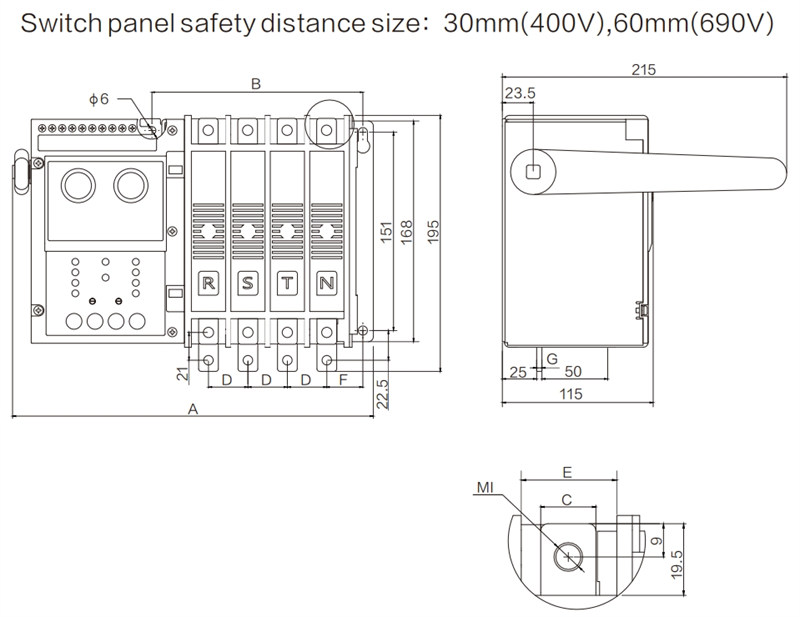

LMS1-LA3 Series PC Automatic transfer switch Ats 604

untitled-9-1

automatic-transfer-switch-9
