LMS1-L Series Automatic Transfer Switch ATS 630A

Model Name: LMS1-L

Rated Voltage: AC230A，AC400V

Rated Current: 16A-630A

Pole: 2P，3P，4P

Product Category: PC Class

Features: 3 Position,No Ats Controller

Drive Mode: Excitation type

Certification: CE, CB, CCC

Standard: IEC 60947-6-1

Email: sale@lvma-ele.com

rEAD more

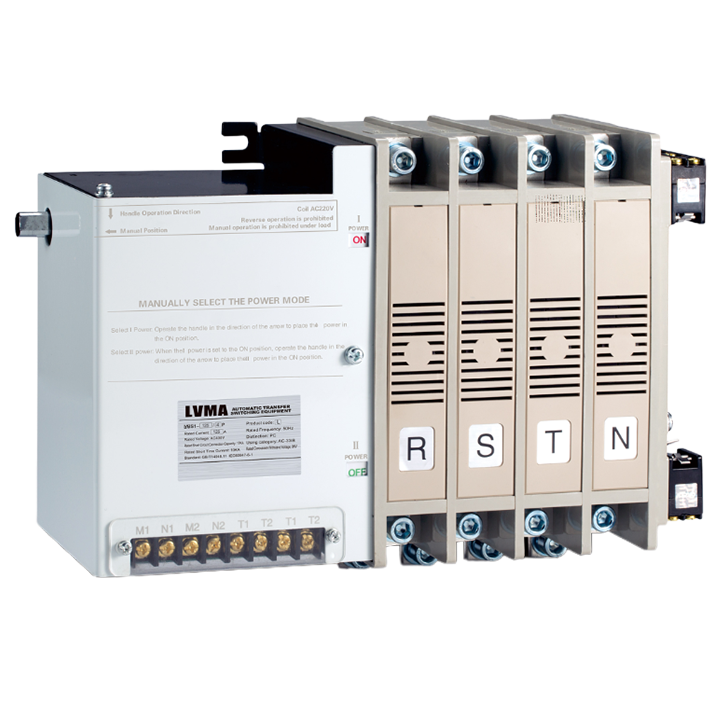

Made with insMind-GL 250A -1 拷贝 4
product details
LMS1-L can detect the status of two power supply (main power supply and standby power supply) , and automatically switch to the standby power supply in the case of main power failure, too low voltage, too high voltage, abnormal frequency, etc. , to ensure the continuity of the power load, switching time of 30 milliseconds to ensure that electrical equipment will not stop working due to power outages. When the main power supply return to normal, can automatically switch back to the main power supply.

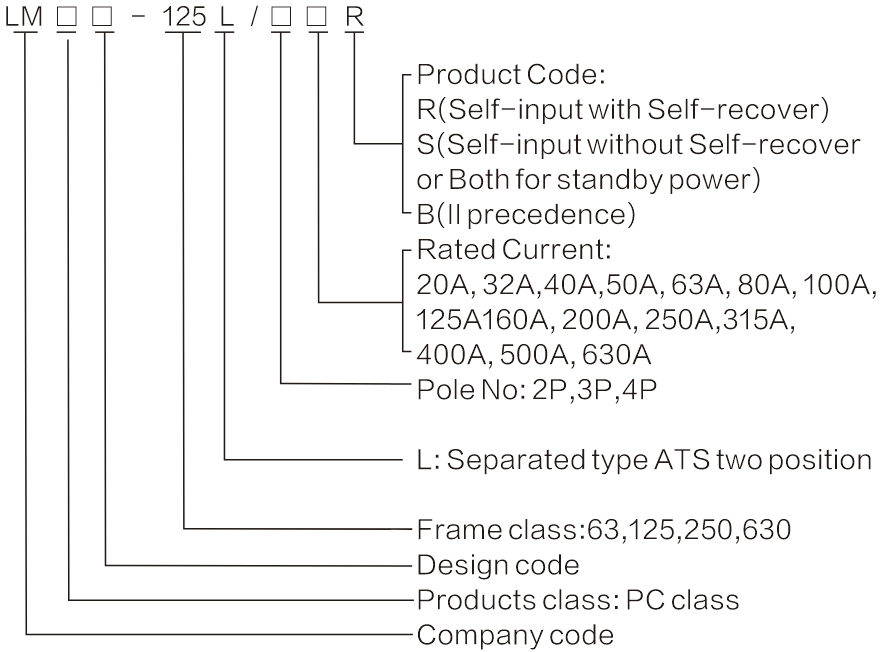

Model Description

automatic-transfer-switch-01-1

Notice：
1. Separated type ATS can be chose Y-701(LED) or Y-702(LCD) Controller .
2. ATS without output signal to start generator,Y-701 and Y-702 controller with it.

Working Environment

□ Ambient air temperature: ambient temperature -5℃ to +40℃, and the 24-hour average temperature value does not exceed Over +35°C. Users whose ambient air temperature is higher than +40°C or lower than -5°C should consult with the manufacturer.
□ The highest temperature of atmospheric humidity: when the degree is +40℃, the relative humidity does not exceed 50%, and the maximum relative humidity per month Degree 90%, resistant to the influence of humid air on the sea, and can allow higher relative humidity at lower temperatures , special measures should be taken for the occasional condensation caused by temperature changes.
□ Installation altitude: The altitude of the installation site does not exceed 2000 meters. When used at higher altitudes, the dielectric strength and cooling effect of the air should be considered to be reduced, please consult with the manufacturer.
□ Pollution level: The environmental pollution level of the installation site is level 3 .
□ Installation category: IV .
□ Installation inclination: the product is fixedly installed in the cabinet, the maximum inclination is ±22.5° .
□ Arcing distance: The arcing distance is 30mm when AC 400V. The arcing distance when AC 690V is 60mm.

Main Technical Parameters

Model Name

LMS1-L

Insulation voltage

AC 690V

Rated voltage

AC 400V

Rated current

20A~125A

160A~250A

315A~630A

Rated impulse withstand voltage

8kV

Kind of throw

Double throw

Wiring method

Front board

Short-time resistance current

10kA

Through to breaking capacity

17kA

Transfer time

A Power

Input

80ms

80ms

100ms

Break

30ms

30ms

30ms

B Power

Input

100ms

100ms

120ms

Break

30ms

30ms

30ms

Electrical Life

1000

1000

Mechanical Life

5000

4000

Use type

AC-33ib

Accessaries

Manual handle

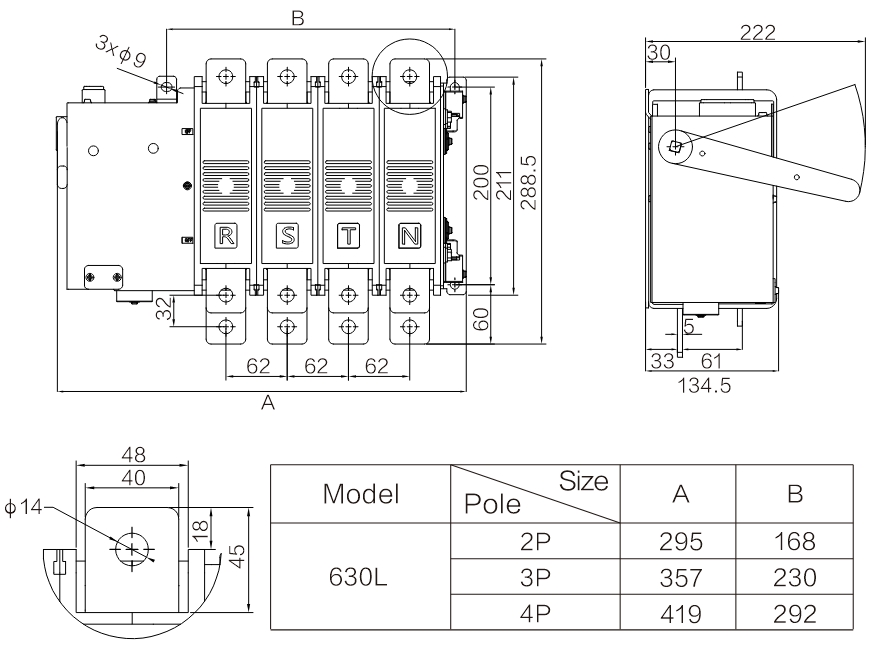

Structure and Mounting Dimensions

LMS1-LA Series Automatic Transfer Switch Ats 630A06

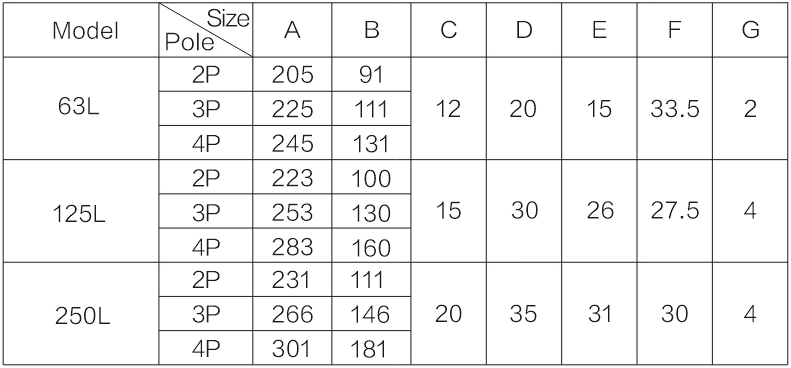

automatic-transfer-switch-12-2

automatic-transfer-switch-13

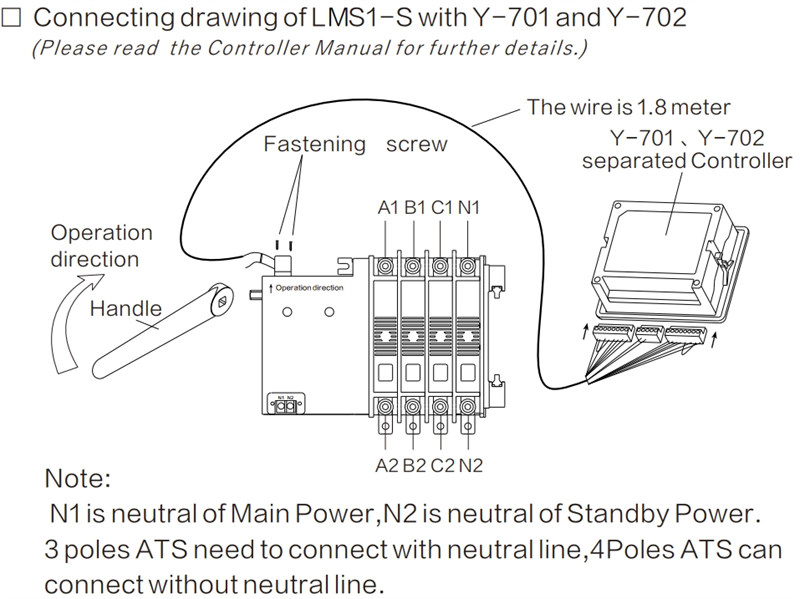

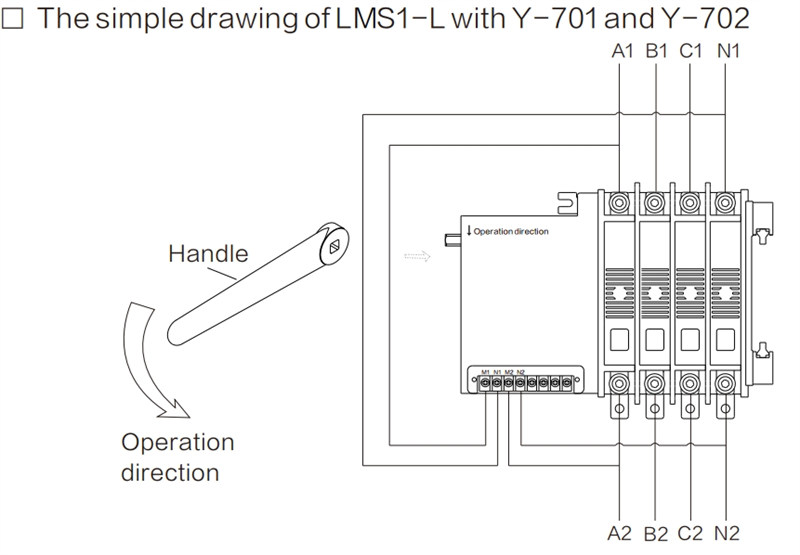

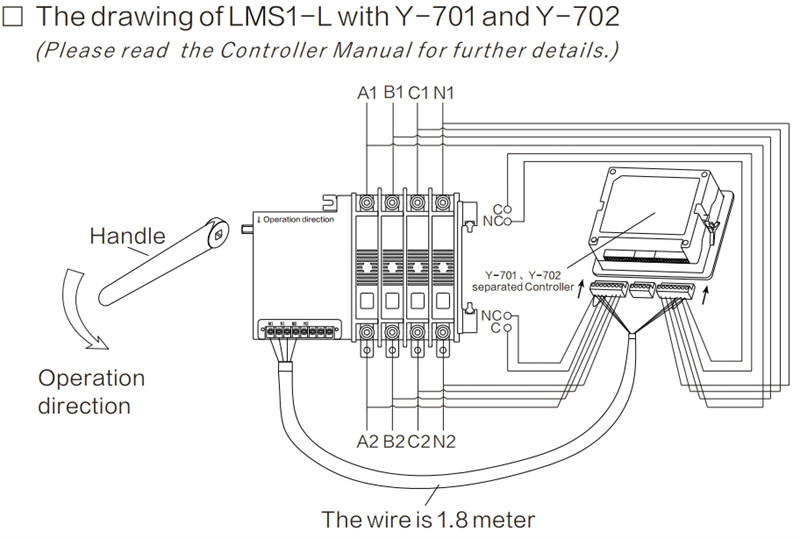

LMS1-LA Series Automatic Transfer Switch Ats 630A02LMS1-LA Series Automatic Transfer Switch Ats 630A03LMS1-LA Series Automatic Transfer Switch Ats 630A04LMS1-LA Series Automatic Transfer Switch Ats 630A05
