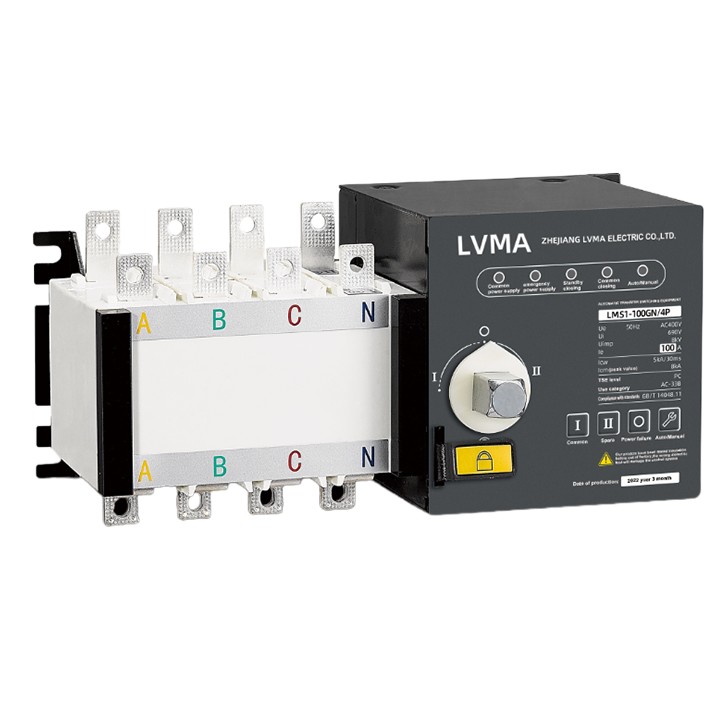

LMS1-GN Automatic Transfer Switch ATS 250A-1

Model Name: LMS1-GN

Rated Working Voltage: AC400V

Rated Working Current: 16A-3200A

Pole: 3P，4P

Rated Insulation Voltage: AC690V, AC1000V

Frame Class: 100,160,250,630,1600,3200

Rated Frequency: 50Hz

Product Category: PC Class

Features: 3 Position,Built-in ats controller

Drive Mode: Motor type

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

rEAD more
Made with insMind-GL 250A -1 拷贝 4
product details
LMS1-GN double power automatic transfer switch is suitable for automatic transfer between two power sources in emergency power supply system with rated working voltage of 400V and below,rated frequency of 50Hz and rated current of 16A to 3200A,to ensure continuous,safe and reliable operation of important loads (such as fire fighting load).
Integrated Compact Design: using dedicated integrated design, the intelligent controller is installed in the switch body to form a compact structure. The user only needs to put the main circuit into use, which greatly reduces the installation space, makes the wiring more convenient, and effectively improves the installation efficiency.
Comprehensive fault detection function: two three-phase power over-voltage, under-voltage, lack of phase fault detection, real-time monitoring of power status, once detected abnormal power, can make the judgment quickly and carry on the corresponding operation, guarantees the firefighting equipment the power supply security.
Optional generator control function: optional with electric generator start and stop signal output function, convenient to use with the electric generator, in the common power failure, can timely start the electric generator, provide backup power supply for fire fighting equipment to ensure the normal operation of fire fighting equipment in case of emergency.
Reliable interlock protection: with reliable mechanical interlock device and electrical interlock protection, it can completely eliminate the possibility of two circuit breakers closing at the same time, it can avoid serious faults such as short circuit caused by two power supply at the same time, and ensure the security and stability of the system.
Intelligent Control: the Intelligent Controller takes the monolithic integrated circuit as the control core, the hardware is succinct, the function is formidable, the expansion is convenient, the reliability is high. It can not only accurately detect the state of the power supply, but also realize the intelligent control of the dual power conversion, and can set the automatic conversion parameters freely through the external, such as overvoltage, undervoltage threshold, switching delay time, etc.

Model Description

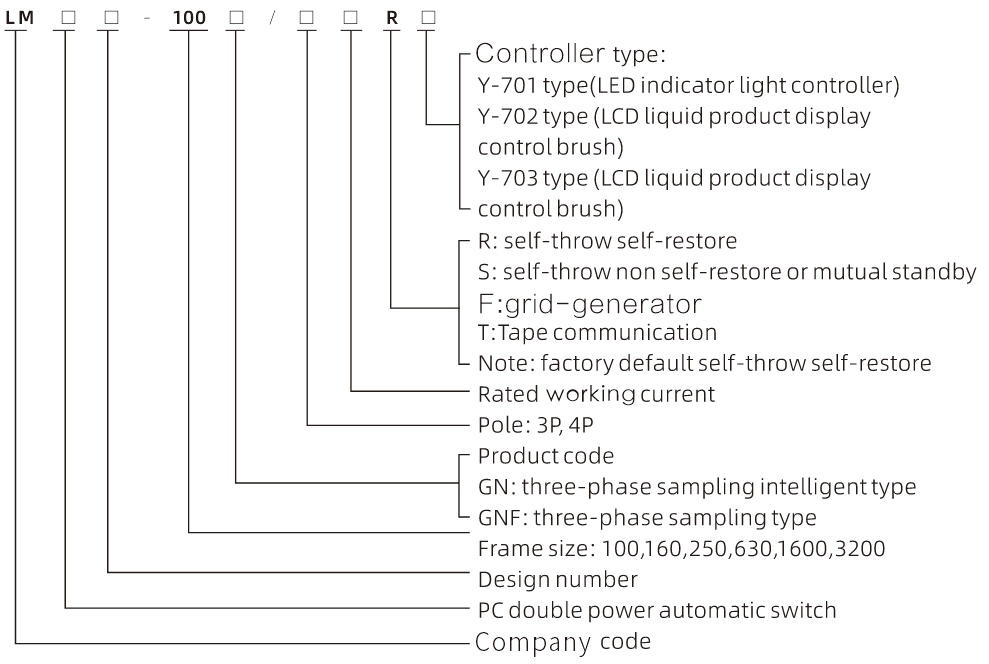

automatic-transfer-switch-ats-2

Main Technical Parameters

    Frame class

    100

    160

    250

    630

    1600

    3200

    Rated working current le (A)

    16,20,25,32, 40,50,63,80,100

    125,160

    200,225,250

    315,350,400, 500,630

    800,1000 1250,1600

    2000,2500 3200

    Rated insulation voltage(Ui)

    690V

    800V

    1000V

    Rated impulse withstand voltage(Uimp)

    8KV

    12KV

    Rated working voltage(Ue)

    AC400V

    Use category

    AC-33iB

    Rated short circuit making capacity(Icm)

    8KA

    17KA

    26KA

    67.5KA

    Rated short time withstand current(Icw)

    5kA/30ms

    10kA/60ms

    12.6kA/60ms

    32kA/60ms

    Transfer time

    2.5s

    1.2s/2.5s

    1.2s

    1.8s

    2.4s

    Rated short circuit pulse current

    Frount fuse 50KA

    Front fuse 90KA

    Note. 630 frame productiont operation time is divided into 1.2s (series motor), 2.5s (synchronous motor)

    wechat-screenshot_20250321115756

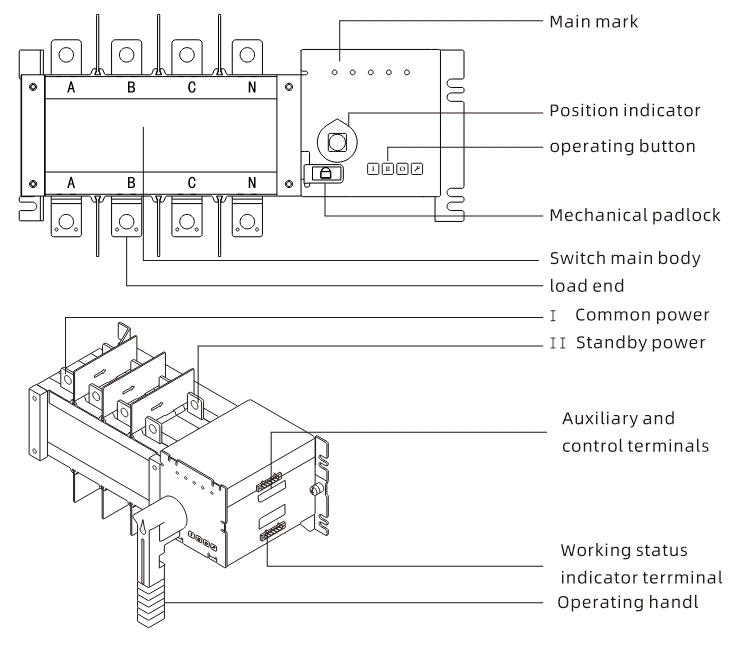

    1.Operation button:The operation button is used to control the switch in the manual state,and is used to switch the hand/automatic state.You can also use this button if you want to change the working mode of the product.
    2 Operating handle:When using the operating handle to operate the switch,the power supply of the main circuit must be cut off or the operating button must be in the manual state.
    3 Mechanical padlock:when maintenance,first use the operating handle to make the switch in the state of "O off"state,then pull up the mechanical hang.
    4 Position indication:mark the working position of the switch(I common use,O power off,ll standby).

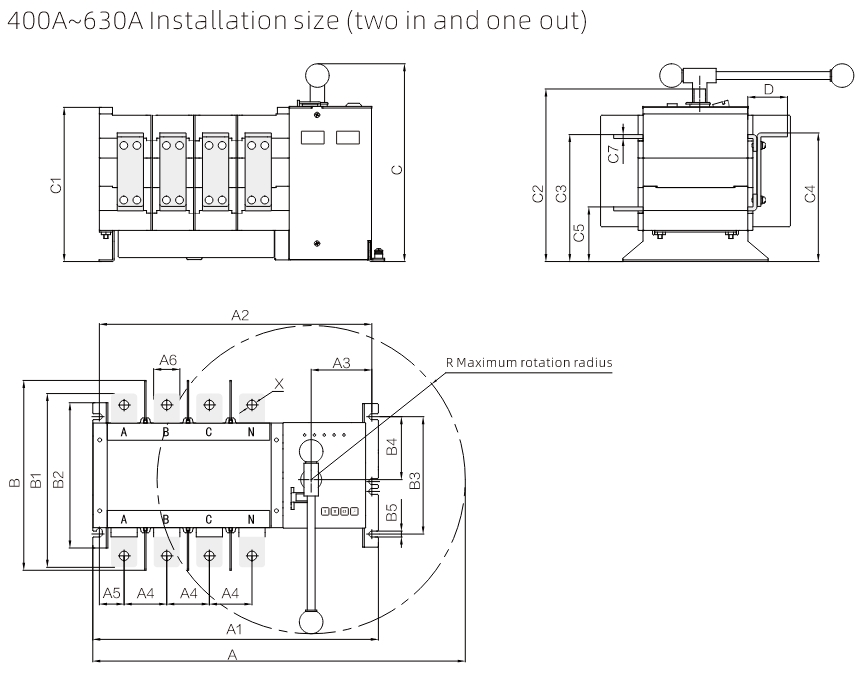

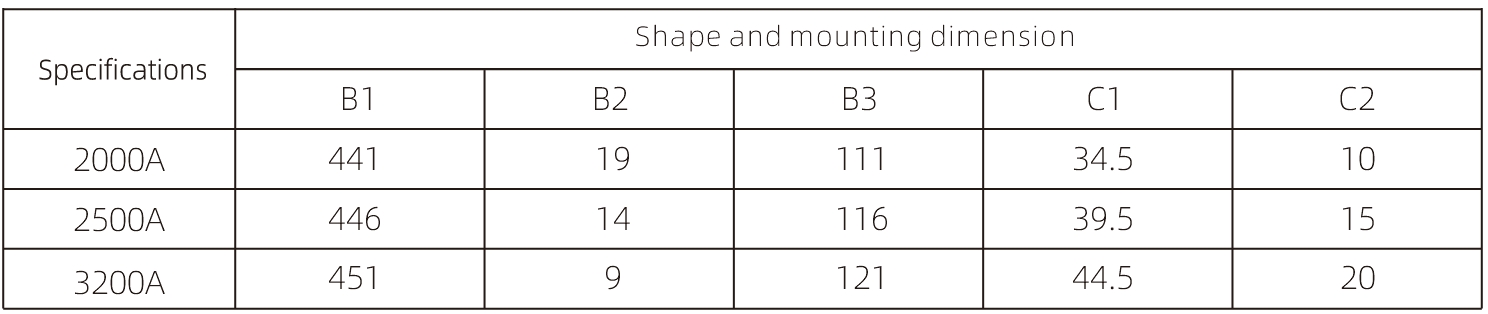

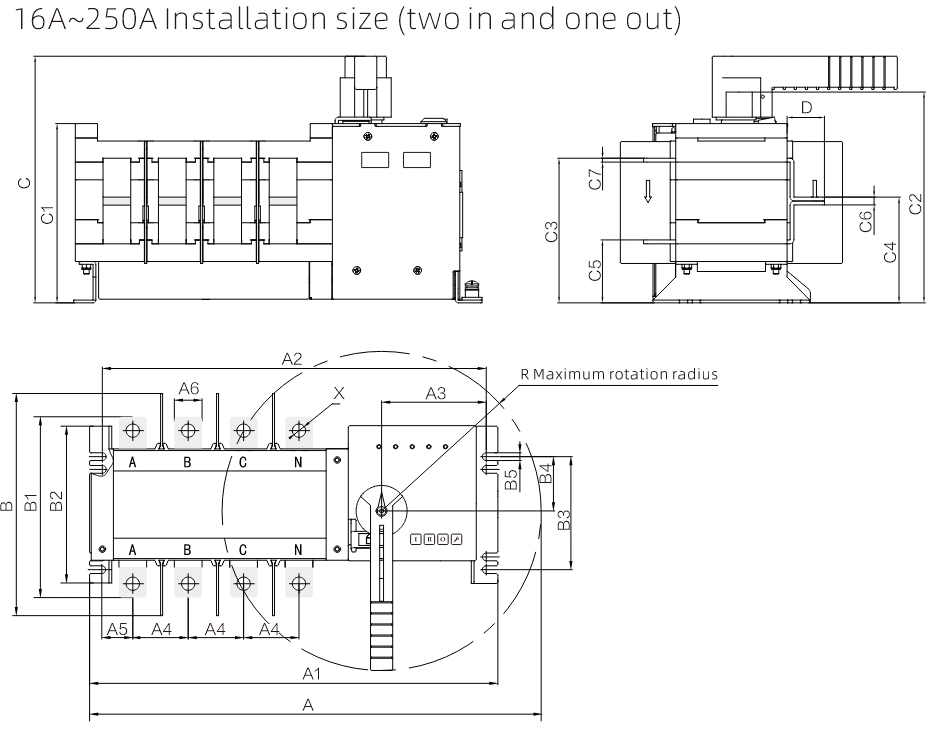

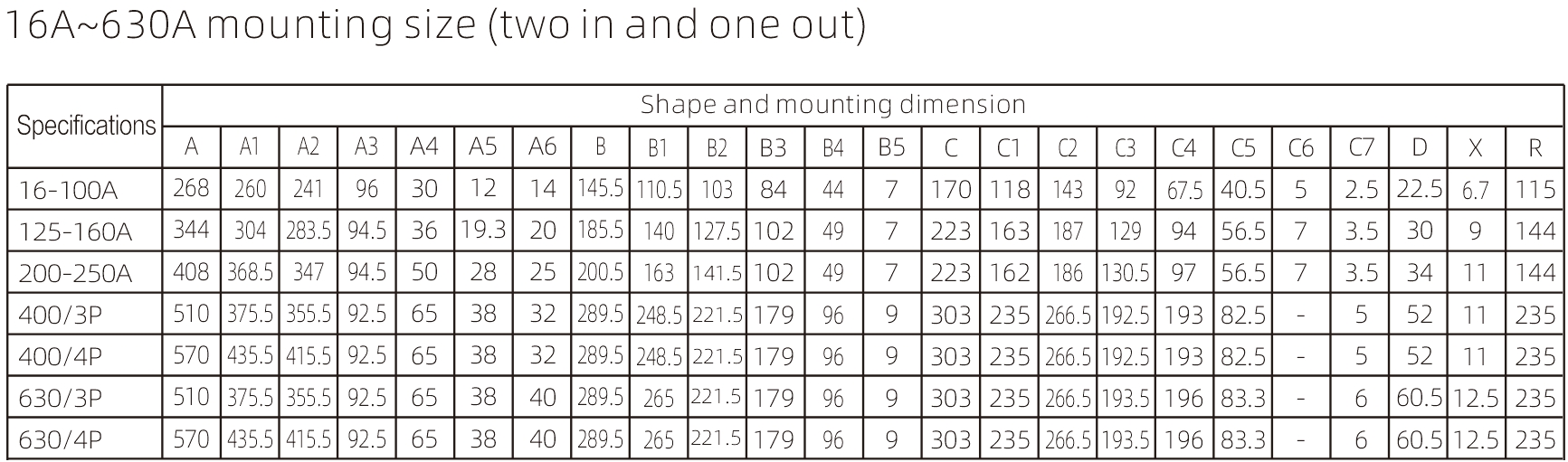

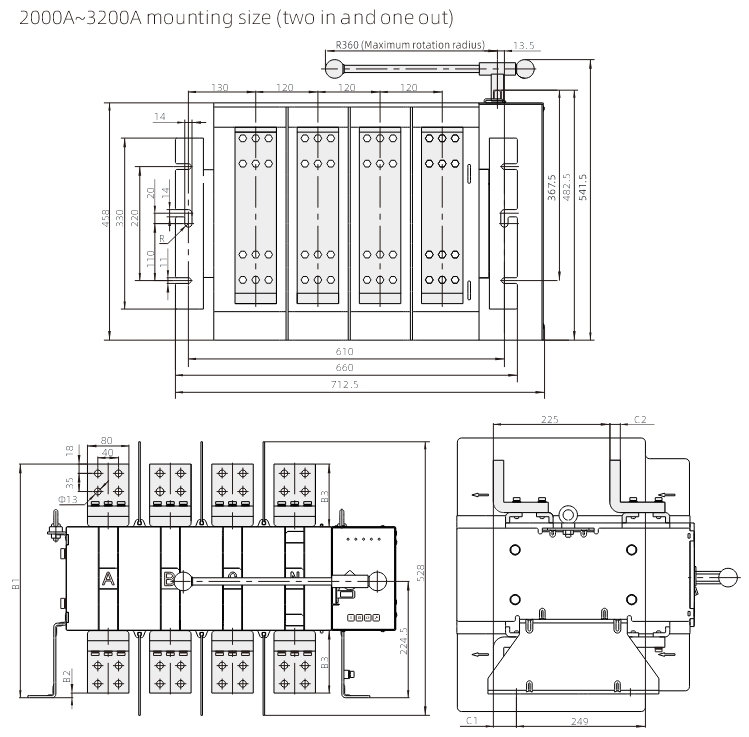

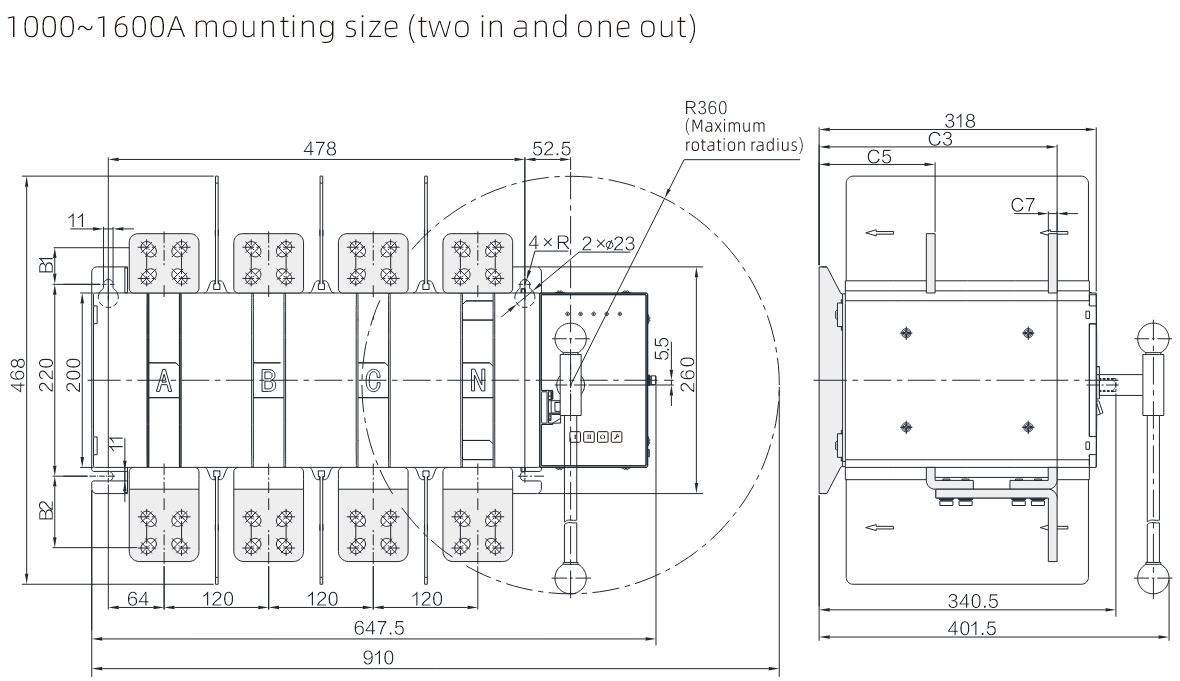

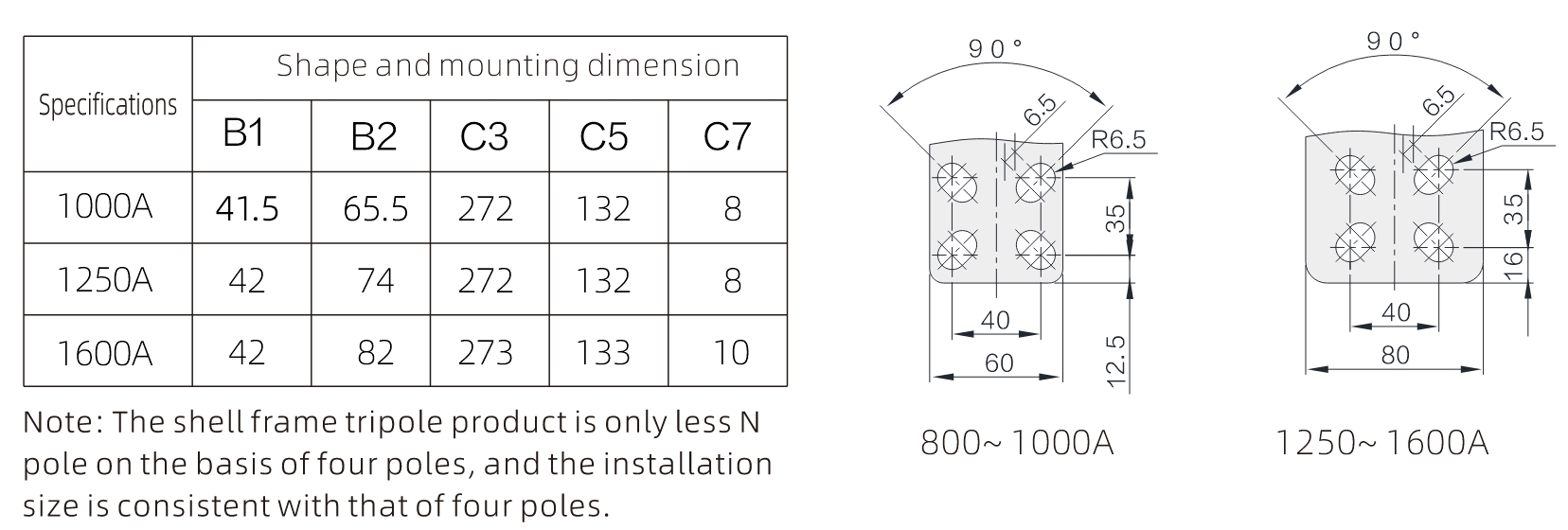

    Structure and Mounting Dimensions

    wechat-screenshot_20250319103024

    wechat-screenshot_20250319103057

    wechat-screenshot_20250319103322

    wechat-screenshot_20250319103344

    wechat-screenshot_20250319104005

    wechat-screenshot_20250319103705

    wechat-screenshot_20250319103712

    FAQ

    Q1: What is the ampere rating of the LMS1-GN automatic transfer switch?
    A1: Rated currents are 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 225, 250, 315, 350, 400, 500, 630, 800, 1000, 1250,1600,2000,2500,3200a.

    Q2: Dual power switching time is generally how long?
    A2: PC-level Dual Power transfer switch switching speed is relatively fast, CB-level dual power transfer switch switching time is generally in 1-2s.

    Q3: Can the deep-sea controller accommodate GN Dual Power supplies
    A3: Yes, GN-type dual power supply can be adapted to deep-sea controller, to achieve remote control, monitoring, conversion circuit power needs.
