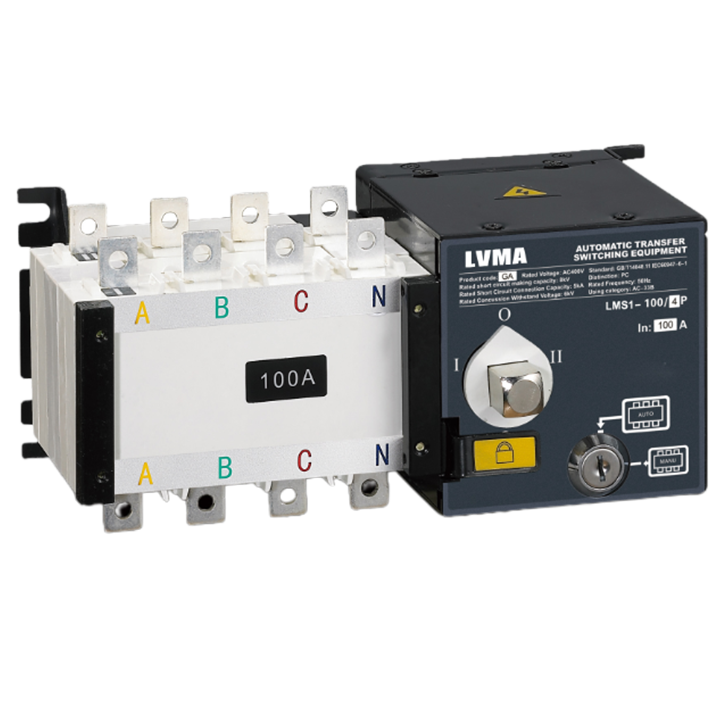

LMS1-GA series Automtic transfer Switch ATS 100A

Model Name: LMS1-GA

Rated Working Voltage: AC400V

Rated Working Current: 16A-3200A

Pole: 3P，4P

Rated Insulation Voltage: AC 800V

Frame Class: 100,250,630,1600,3200

Control Voltage: DC12V, AC110V, AC220V

Rated Frequency: 50Hz

Product Category: PC Class

Features: 3 Position,With fire fighting function

Drive Mode: Motor type

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

Email: sale@lvma-ele.com

product details

LVMA automatic transfer switch series with 125A, 160A, 250A, 400A, 630A, 1000A, 1250A, 1600A, 2000A, 2500A and 3200A class current. We have designed and developed the drawings and moulds of ATS automatic transfer switch by our own R & D Team. LVMA's ATS has an elegant look and superior design, with automatic transition logic that works with external controllers such as Deepsea, ComAp, and Smartgen.

Note: The terminal design is changed to 2-input 1-output, user-friendly wiring.

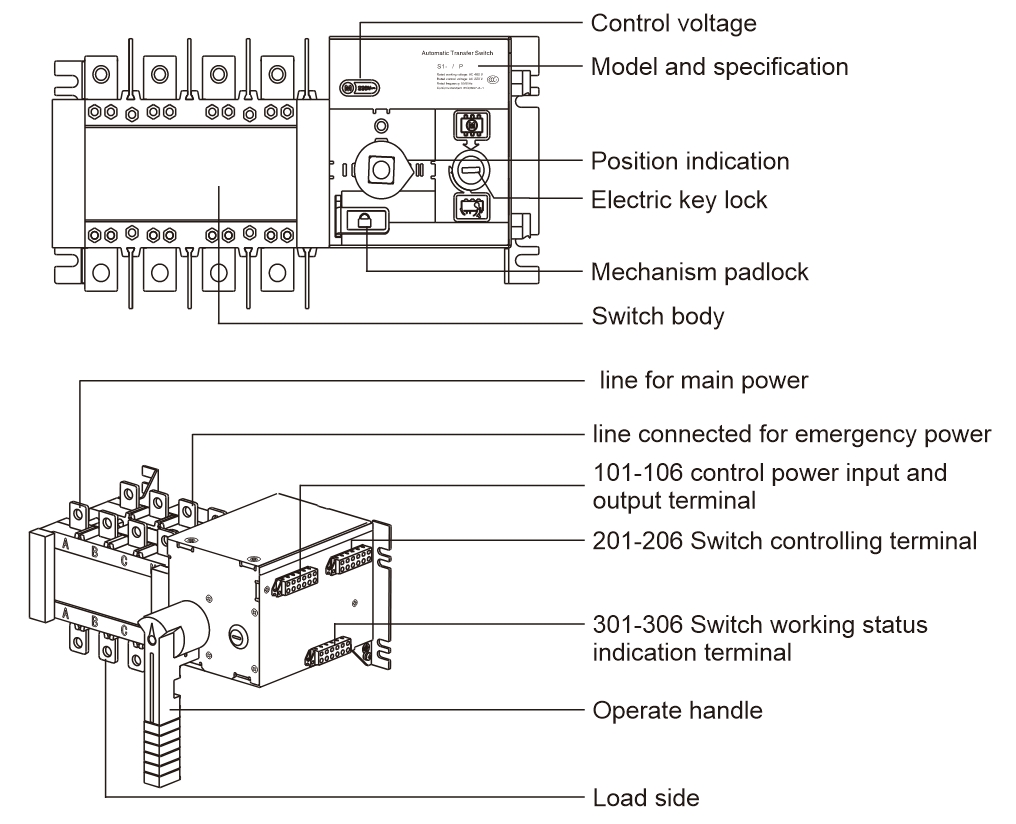

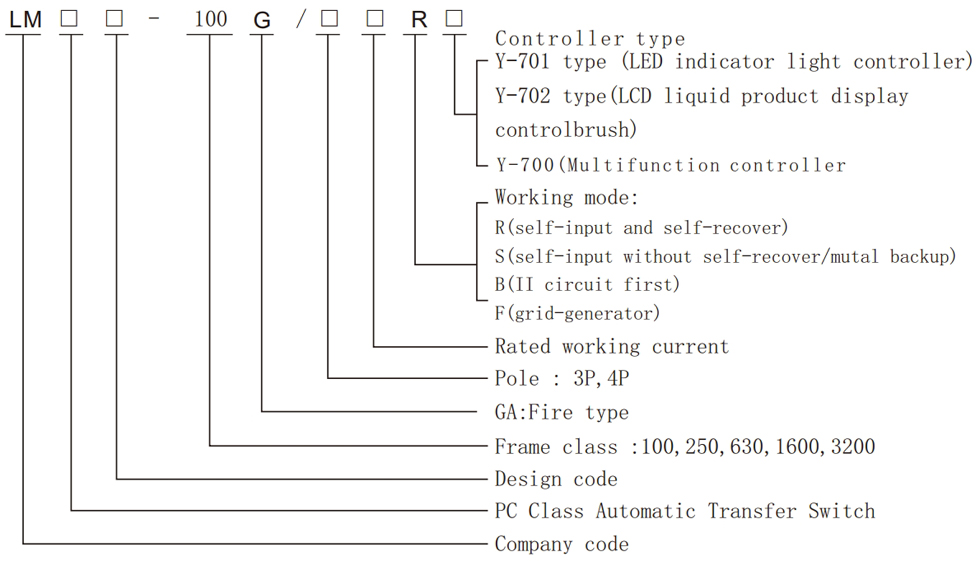

Model Description

automatic-transfer-switch-5-3

Main Technical Parameters

Frame class		100									250						630					1600				3200
Rated current In(A)		16	20	25	32	40	50	63	80	100	125	160		200	225	250	315	350		400	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage(Ui)		690V																				800V
Rated concussion withstand voltage(Uimp)		8KV
Rated working voltage(Ue)		AC400V
Using category		AC-33B																				AC-33iB
Rated short-circuit connection capacity		8KA									17Ka						26KA					67KA
Rated short-time withstand current(Icw)		5kA/30ms									10kA/60ms						12.6kA/60ms					32kA/60ms
Transfer time Ⅰ-Ⅱ or Ⅰ-Ⅱ		2.5s									2.2s						0.6s					2s
Control voltage		DC 12V,AC110V, AC220V
Rated frequency	Start	11W									13W						355W					400W	440W			600W
	Norma																74W					90W	98W			120W
Weight(kg) 4Pole		3.4									6		7.6				15.8		16.8			36	36	37	38.6	55	61	67

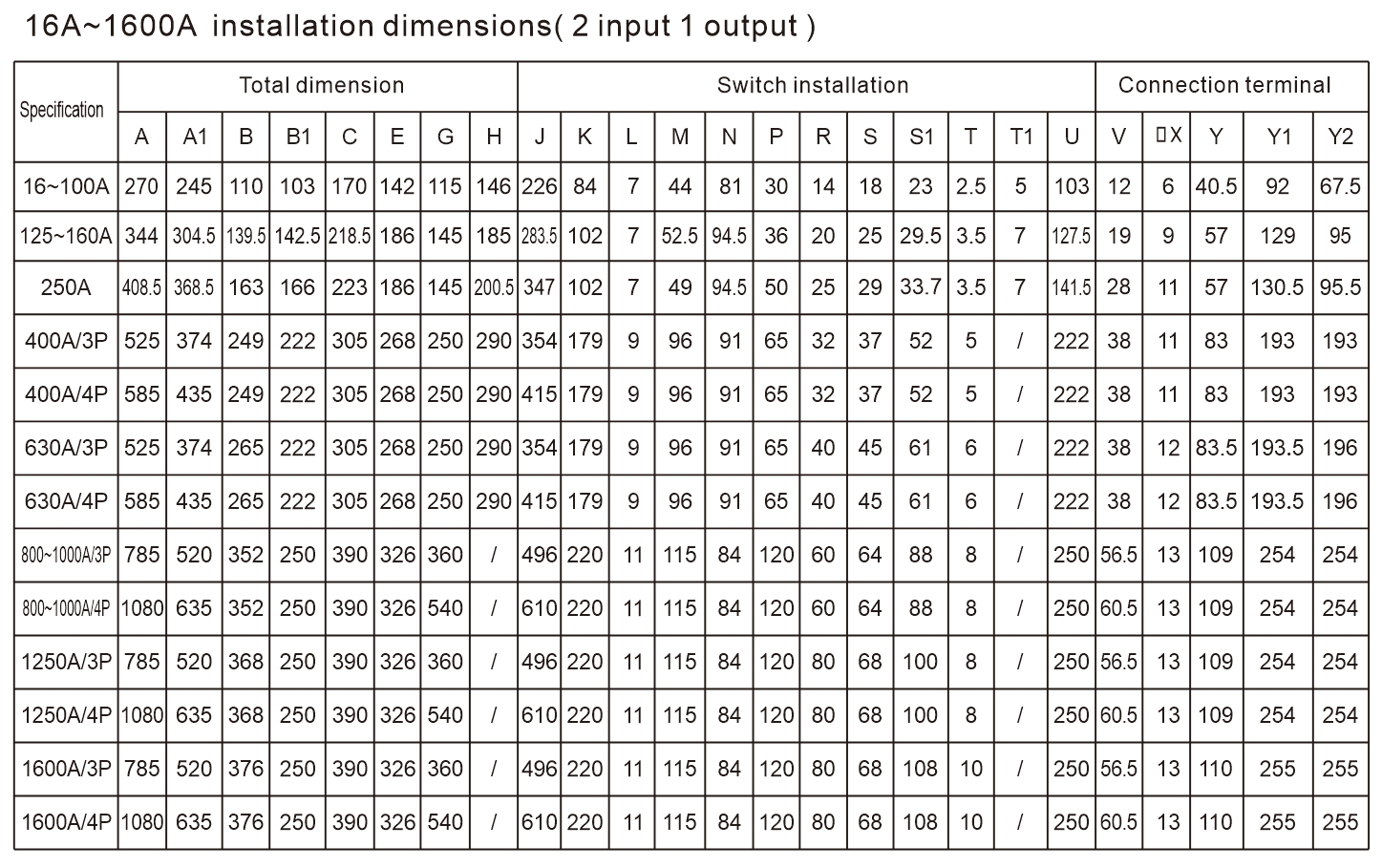

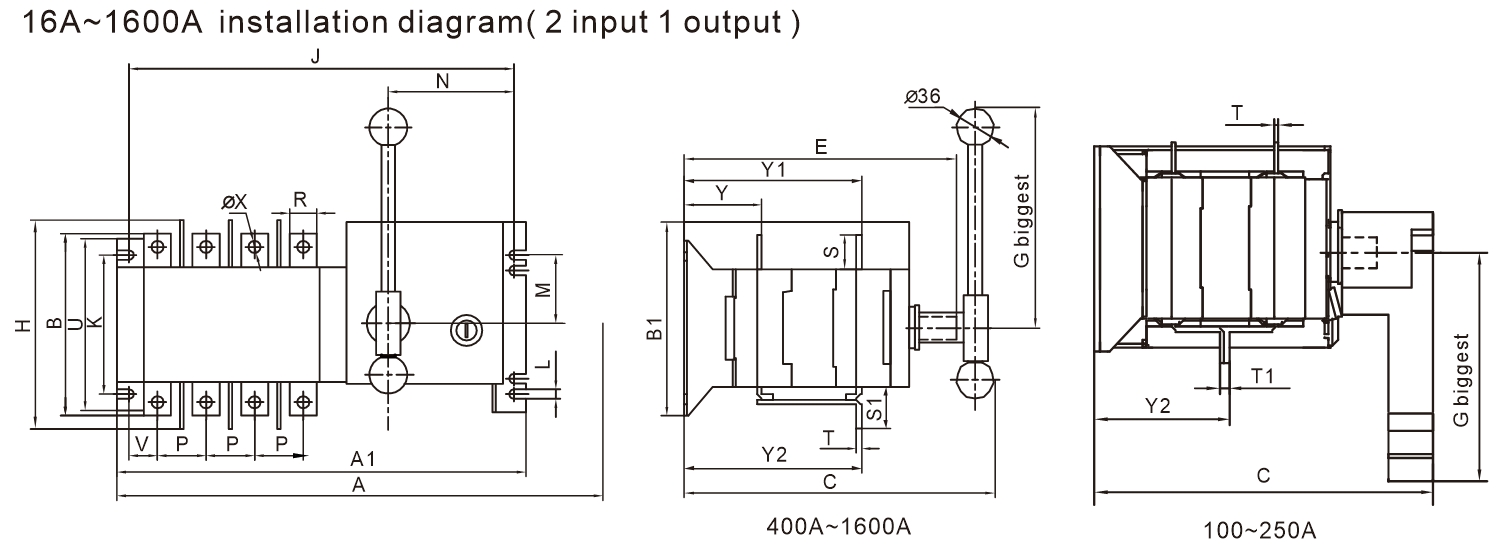

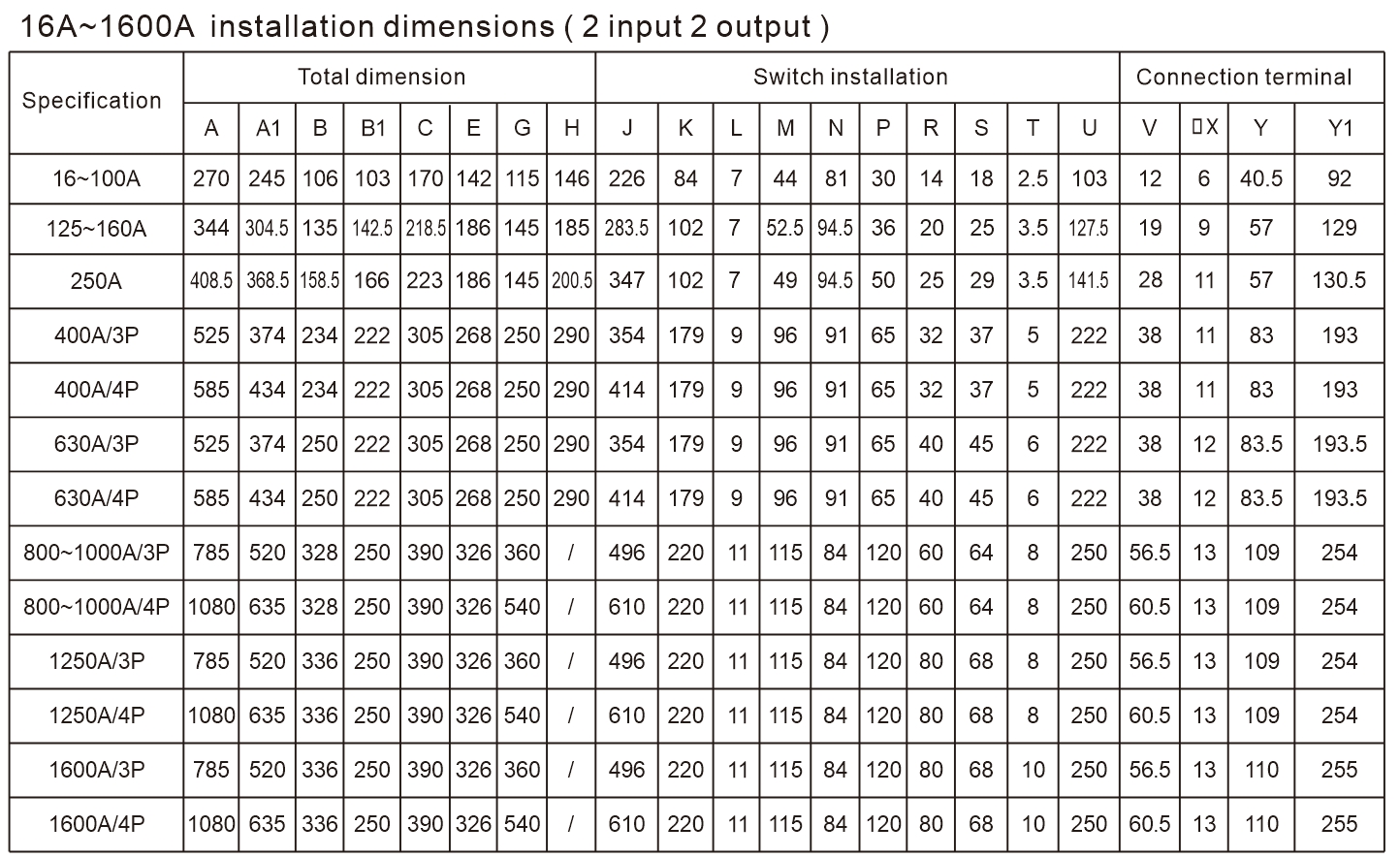

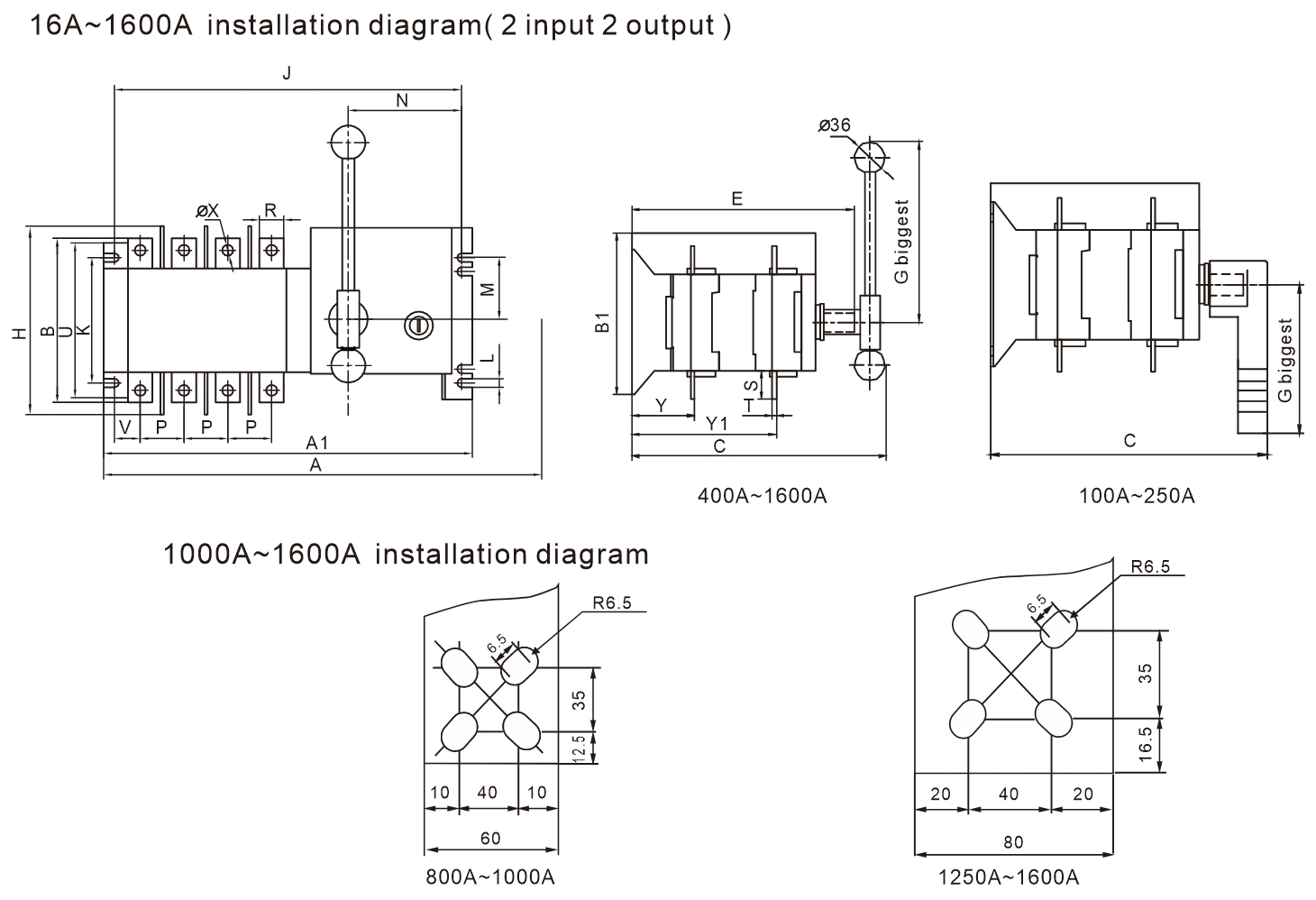

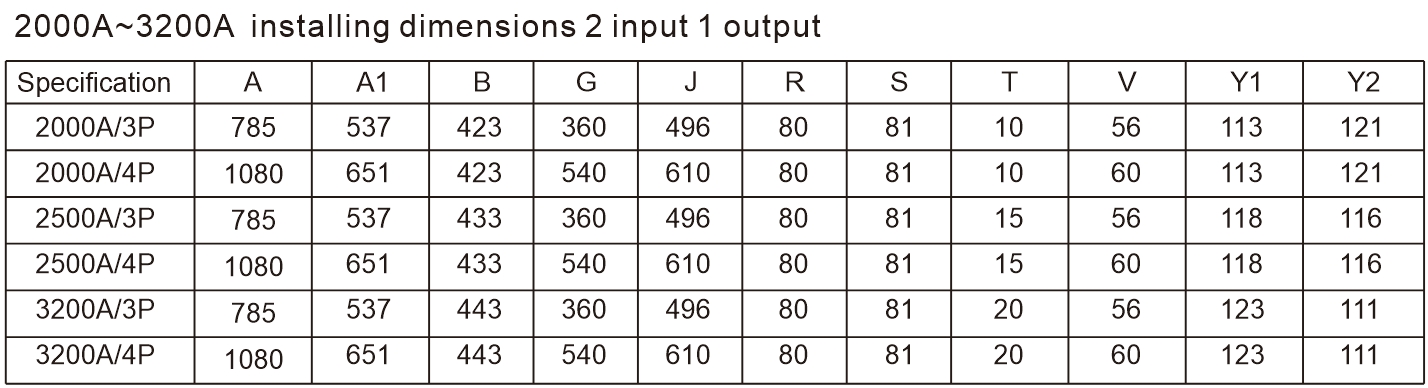

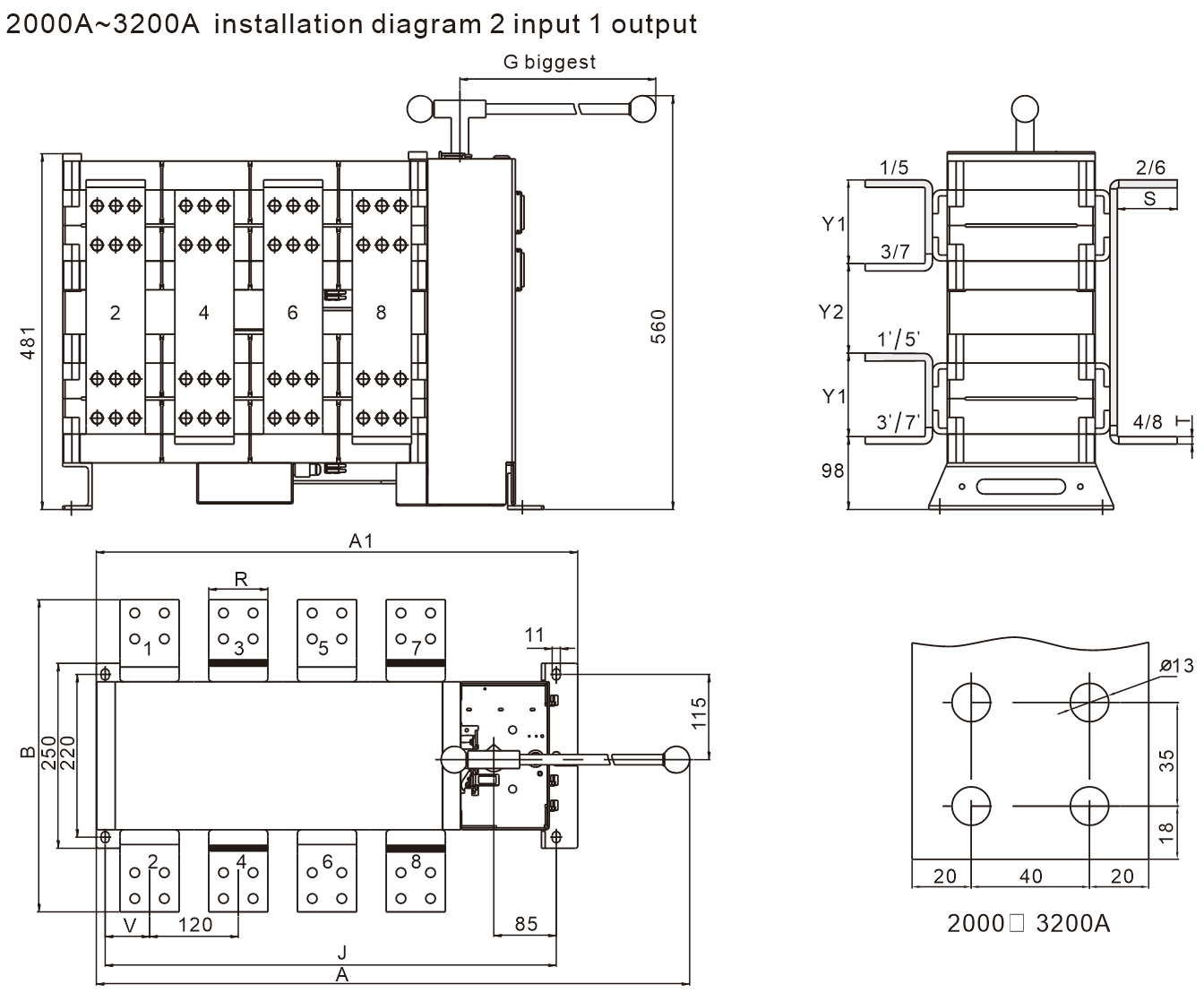

Structure and Mounting Dimensions

automatic-transfer-switch-7-1

automatic-transfer-switch-8-2

automatic-transfer-switch-9-1

automatic-transfer-switch-10-1

automatic-transfer-switch-11-1

automatic-transfer-switch-12-3

FAQ

Q 1: What is the difference between a CB-class product and a PC-class product?

A 1: PC class: ATSE that can turn on, carry, but not break, short-circuit current

CB class: ATE equipped with overcurrent release, its main contact can be made and used to break short-circuit current

Q2: Is the LMS1-GA type automatic transfer switch motor type or electromagnetic type

A2: OUR LMS1-GA automatic transfer switch motor type.

Q3: Could I have prices of your products?

A3: Welcome. Please feel free to send us an inquiry here. We will reply you within 24 hours.
