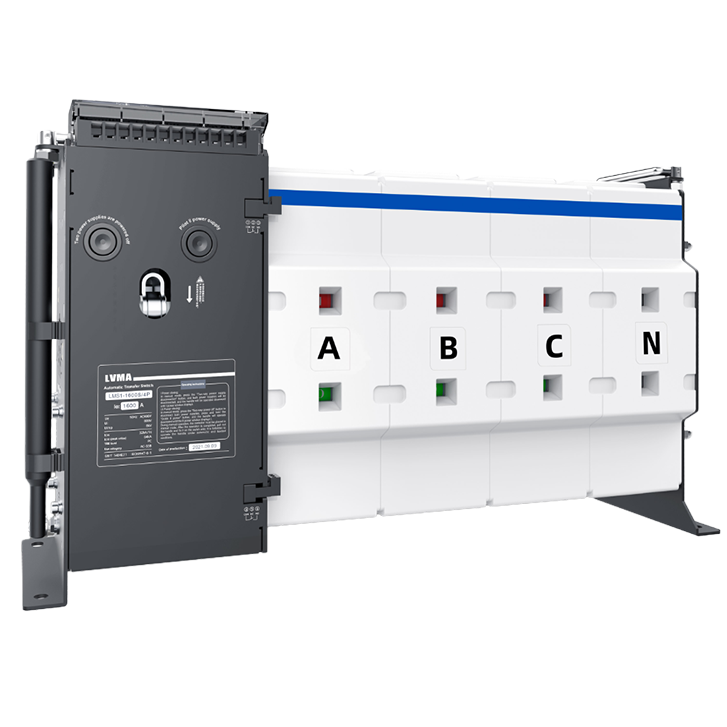

LMS1-1000SN Automatic Transfer Switch ATS

Model Name: LMS1-SN

Rated Voltage: AC400V

Rated Current: 400A~2000A

Pole: 3P，4P

Product Category: PC Class

Drive Mode: Excitation type

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

Email: sale@lvma-ele.com

product details

Dual Power Automatic transfer switch is the key equipment to ensure the continuous power supply. It can monitor the main and standby power supply in real time. Once the main power supply fails, it can automatically switch to the standby power supply within tens of milliseconds to ensure that the load power supply does not stop. With the characteristics of mechanical and electrical interlocking, zero-crossing, indication isolation and good Electromagnetic compatibility, it is widely used in hospitals, high-rise buildings, data centers, industries and other scenarios that require reliable power supply.

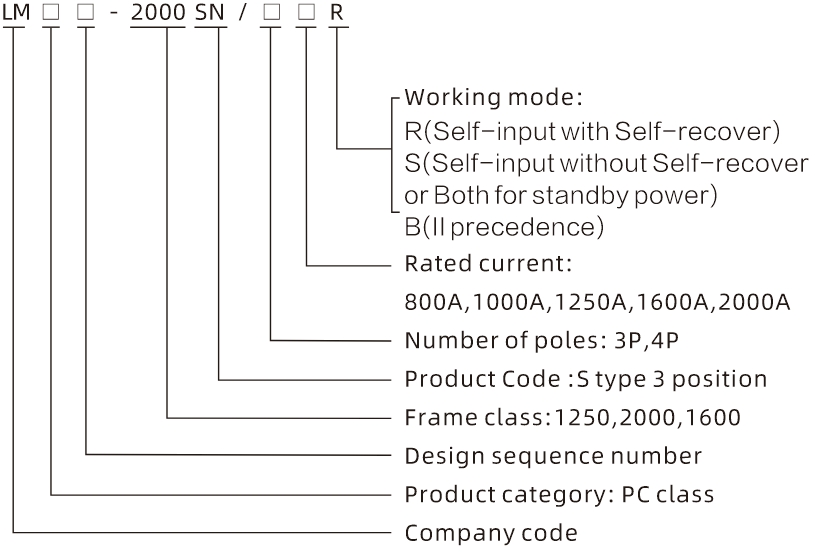

Model Description

automatic-transfer-switch-8-4

Main Technical Parameters

Rated current	800	1000	1250	1600	2000
Rated working voltage(Uc)	AC400V
Rated insulation voltage(Ui)	AC1000V
Pole	3P，4P
Rated control power supply current	20A
Rated impulse withstand(Uimp)	12kV
Electrical level	PC
Working position	I/II/O
Limited short circuit current	120kA
Using category	AC-33B
Electrical life	3000 times
Mechanical life	7000 times
Controller adaptation	Y-700,Y-701,Y-702,Y-703
Executive Stabdards	GB/T 14048.11 IEC 60947-6-1

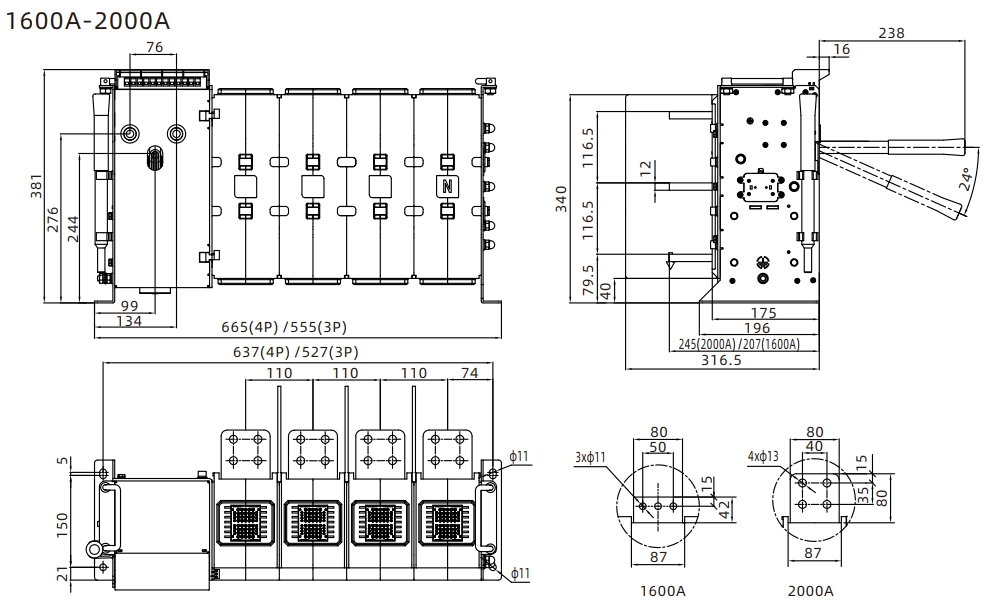

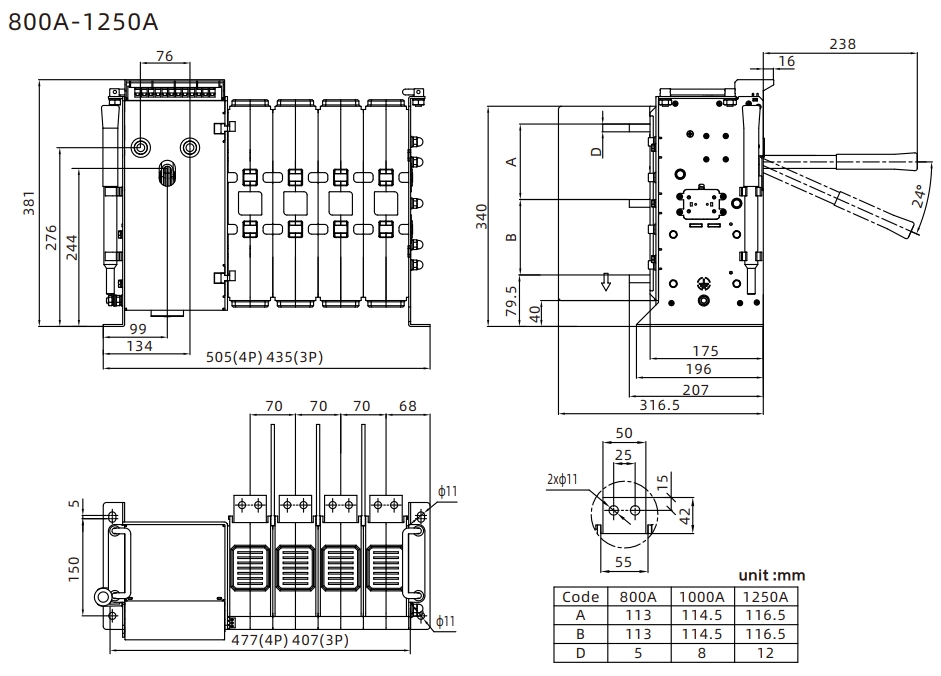

Structure and Mounting Dimensions

LMS1-SN Automatic Transfer Switch Ats detail (2)

LMS1-SN Automatic Transfer Switch Ats detail (3)

LMS1-1000SN Automatic Transfer Switch ATS

Model Description

Main Technical Parameters

Structure and Mounting Dimensions
