LMQ4-63M ATS 63A Automtic Transfer Switch 2P 3P 4P

LMQ4-63M Mini Automatic Transfer Switch（ATS）is suitable for AC 50 Hz or 60 Hz, rated voltage 400V, rated working current 63A and below. It can be used for selective conversion between two dual power sources. LMQ4-63M Mini Automatic Transfer Switch（ATS）has short circuit, overload, and undervoltage protection functions, as well as fire protection, double and output closing signal functions.

product details

1.Reasonable structure, small volume, nice appearance, provided with protective shield, safer and more reliable power supply.

2.Complete protective functions, including short circuit, overload, open phase and loss-of-voltage protection.

3.Reliable remote double-break with EPS fire protection power supply interface DC12-24V.

4.Noiseless, energy saving , simple installation , easy operation, reliable and stable performance.

Main Technical Parameters

Model Name	LMQ4-63M
Product Name	Dual Power Automatic Transfer Switch
Pole	2P,，3P，4P
Rated Current	63A
Rated Voltage	AC230V，AC400V
Frequency	50Hz
Current(optional)	1A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Using the categories	AC-33iB
Suitable for	shift of two-way power, transfer of load equipments and safe isolation
Level	CB
Standard	GB/T14048.11

Working conditions

1.The ambient temperature shall not be higher than +40ºC, or lower than -5ºC, and the daily average shall not exceed +35ºC.

2.The altitude of installation site shall not exceed 2000m.

3.Relative humidity shall not exceed 50% at the ambient temperature of +40ºC , a higher humidity is allowable at a lower temperature, the average maximum relative humidity is 90% in the wettest month at a monthly average minimum temperature of + 25 ºC,and special measures shall be taken for the condensation on surface of product due to temperature change.

Product photos

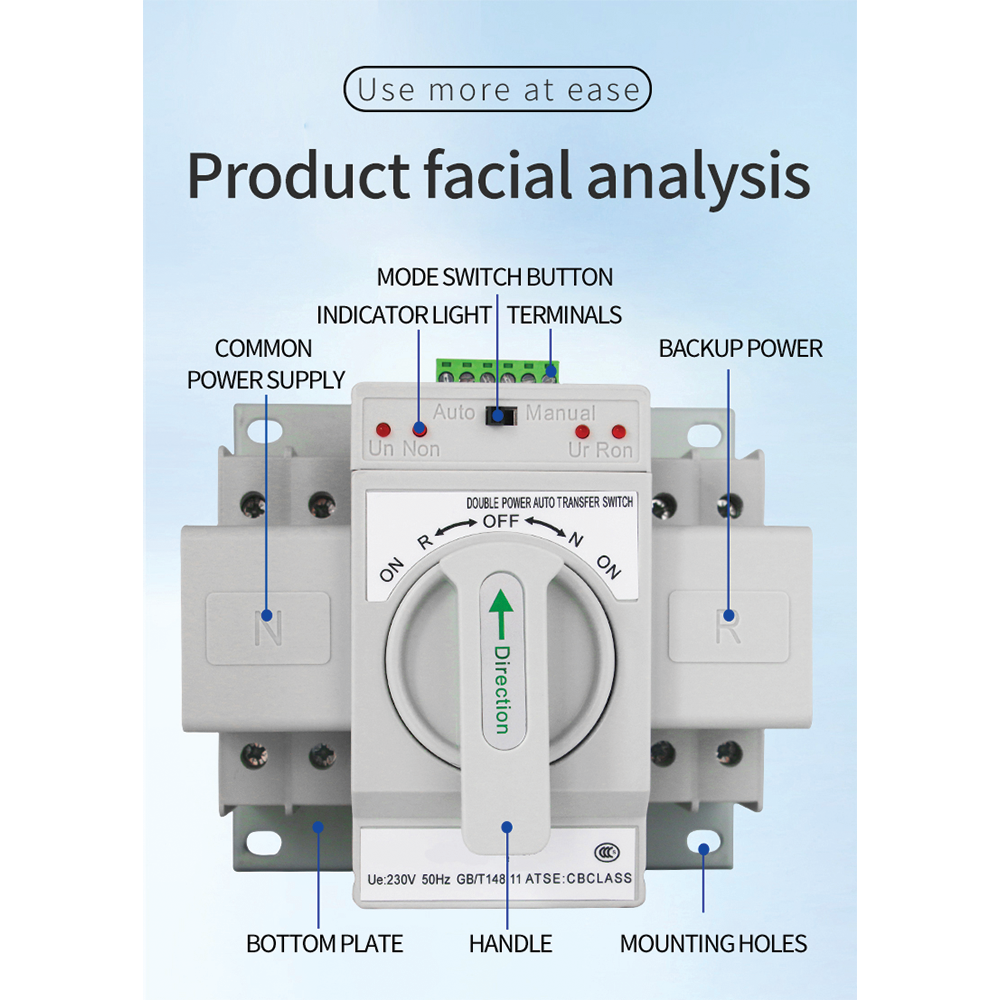

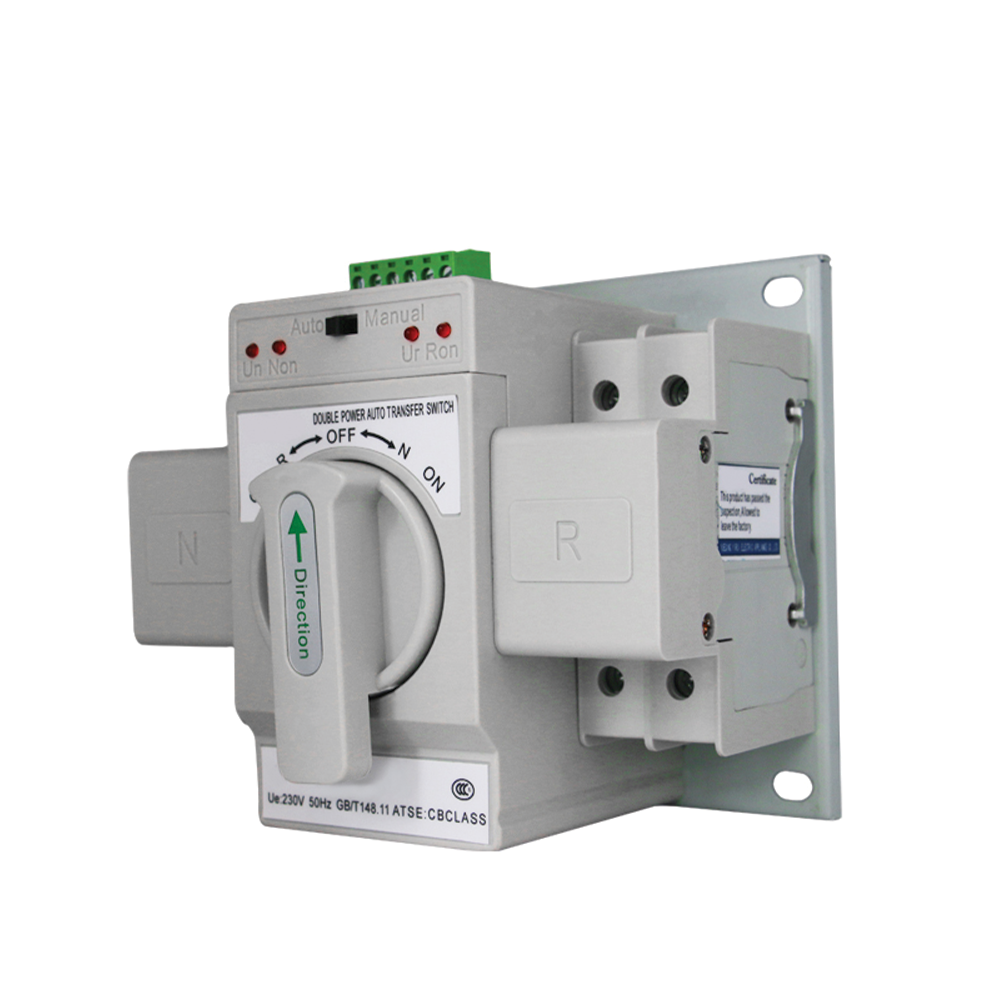

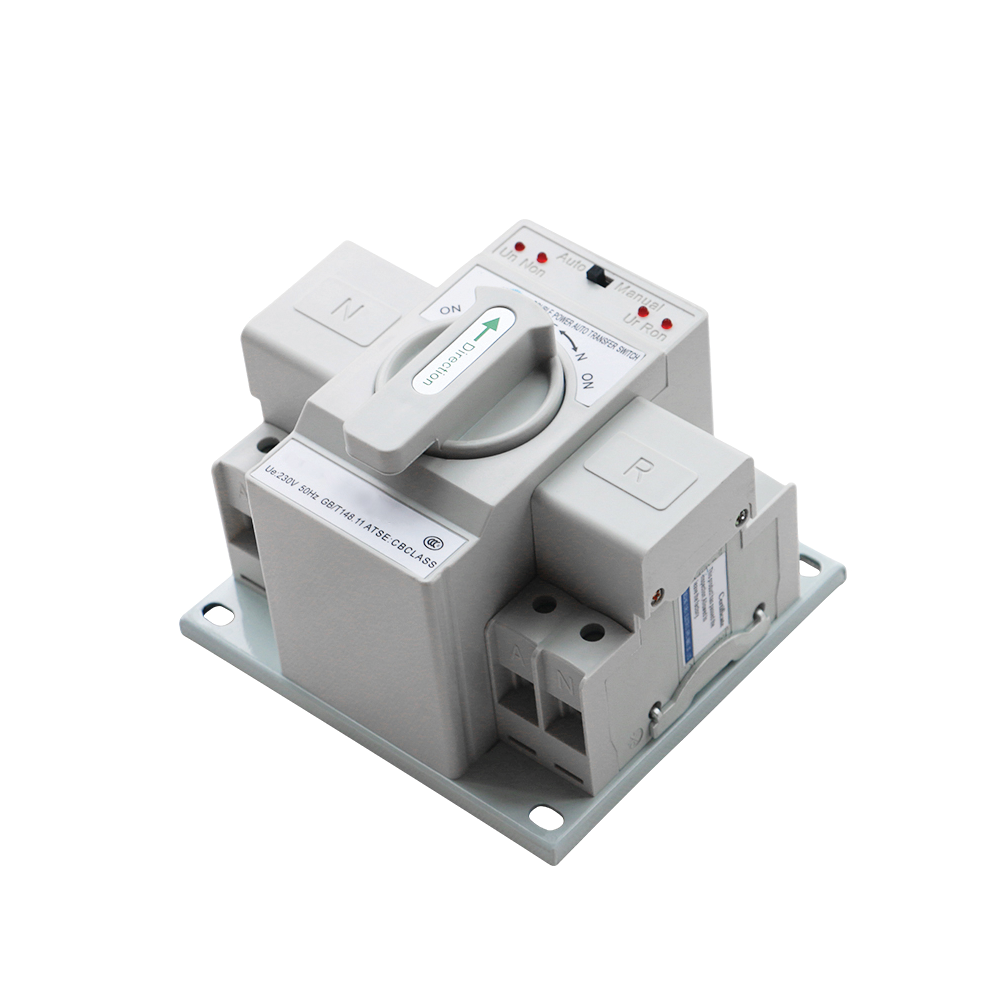

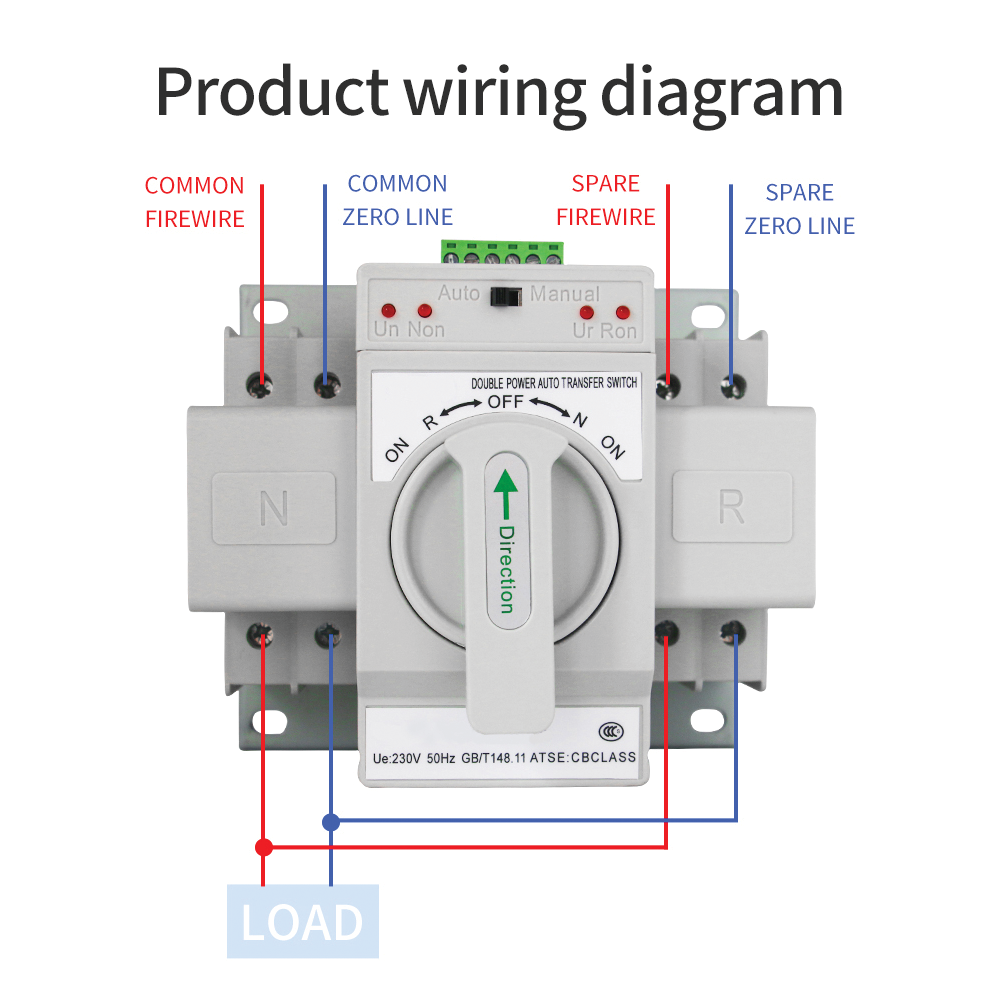

automatic-transfer-switch-3 automatic-transfer-switch-2 automatic-transfer-switch-4
