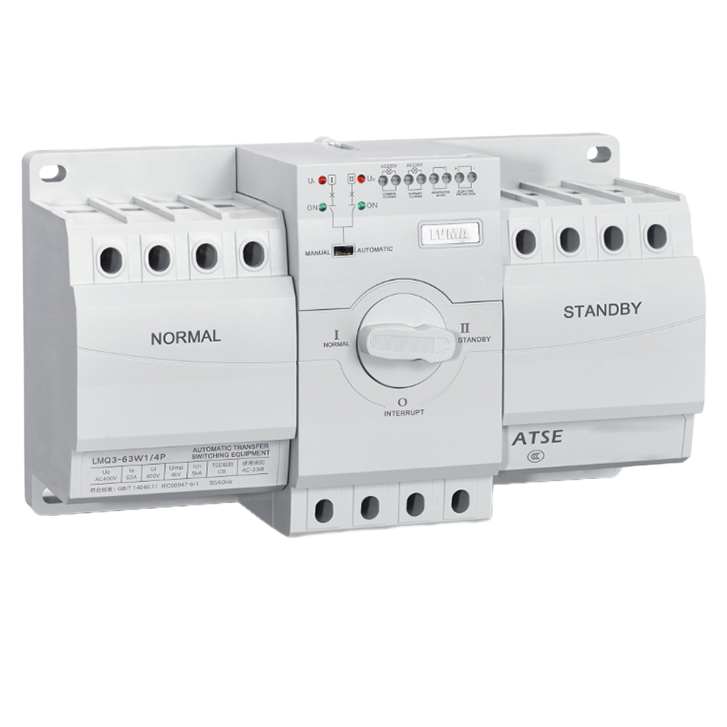

Rated Voltage: AC400V
Rated Current: 6A~63A
Pole: 4P
Product Category: CB Class
Drive Mode: Motor Type
Certification: CE,CB,CCC
Standard: IEC 60947-6-1
Email: sale@lvma-ele.com.
Comply with GB/T14048.11 and IEC947-6-1 standards.
Model Description
Main Technical Parameters
|
Model Name |
LMS1-63W1 |
|
Rated Current(A) |
6,10,16,20,25,32,40,50,63 |
|
Pole |
4 |
|
Rated Working Voltage(V) |
Single Phase 230 |
|
Three Phase 400 |
|
|
Rated insulation voltage(Ui) |
AC 500V |
|
Rated impulse withstand voltage(Uimp) |
4kV |
|
Rated short-circuit making capacity(Icm) |
7.5kA,Power-on time 0.1s |
|
Rated making and breaking capacity(Icn) |
5kA,1.05Ue,cosφ=0.65 |
|
Mechanical life |
10000 times |
|
Transfer time |
≤5s |
|
Undervoltage/Overvoltage action value |
165/270±5V |

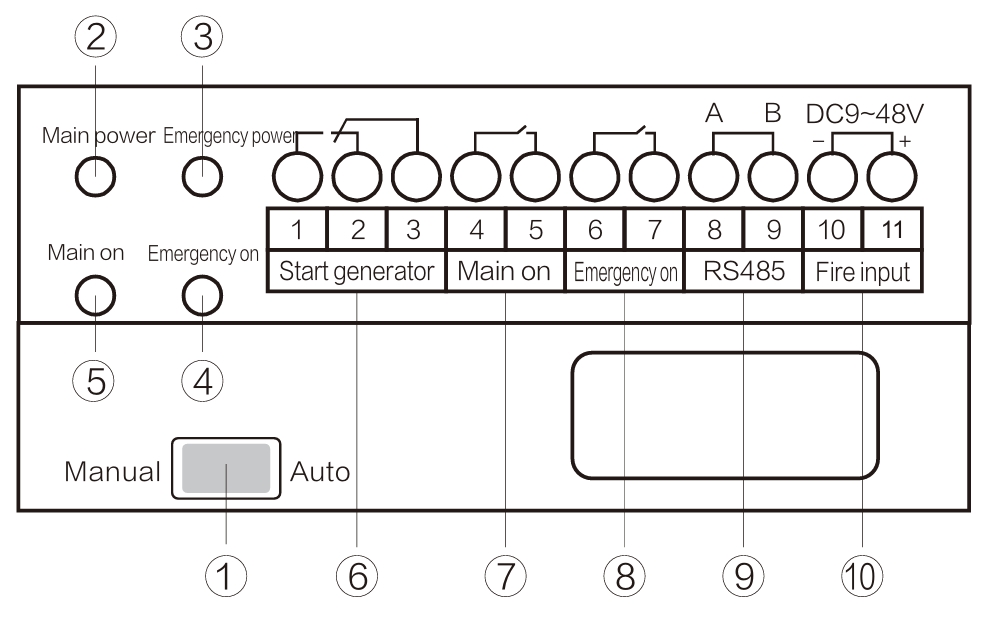

Control panel description
① Auto/Manual mode control switch: When the control switch at the right position, it's in automatic mode, and when the control switch at the left position, it's in manual mode.
② Mian power indicator: When the main power voltage is normal, this indicator on. It turns off when main power phase is missing, flashes rapidly at 10Hz when main power overvoltage, and flashes slowly at 2Hz when main power undervoltage.
③ Emergency power indicator: When the emergency power voltage is normal, this indicator on. Turn off when emergency power abnormal.
④Emergency on indicator: When the emergency circuit breaker is closed, this indicator on. Flashes slowly at 2Hz when the emergency circuit breaker trips.
⑤ Mian on indicator: When the main circuit breaker is closed, this indicator on. Flashes slowly at 2Hz when the main circuit breaker trips.
⑥ Terminal 1,2 and 3 is start generator output terminal: When the main power supply is normal, port 3 and 2 will turn off. And port and 2 will turn on. And port 3 and 1 will turn off. It is recommended to
connect normally closed contacts port 3 and port 2.
⑦ Terminal 4-5: Main power on state passive output port.
⑧ Terminal 6-7: Emergency power on state passive output port.
⑨ Terminal 8-9: RS485 communication port.
⑩ Terminal 10-11 Fire input: When DC9~48V is input, the switch turns
to OFF position. If you need to release the fire state, you can
manually pull the Manual/Auto switch, and turn the switch in

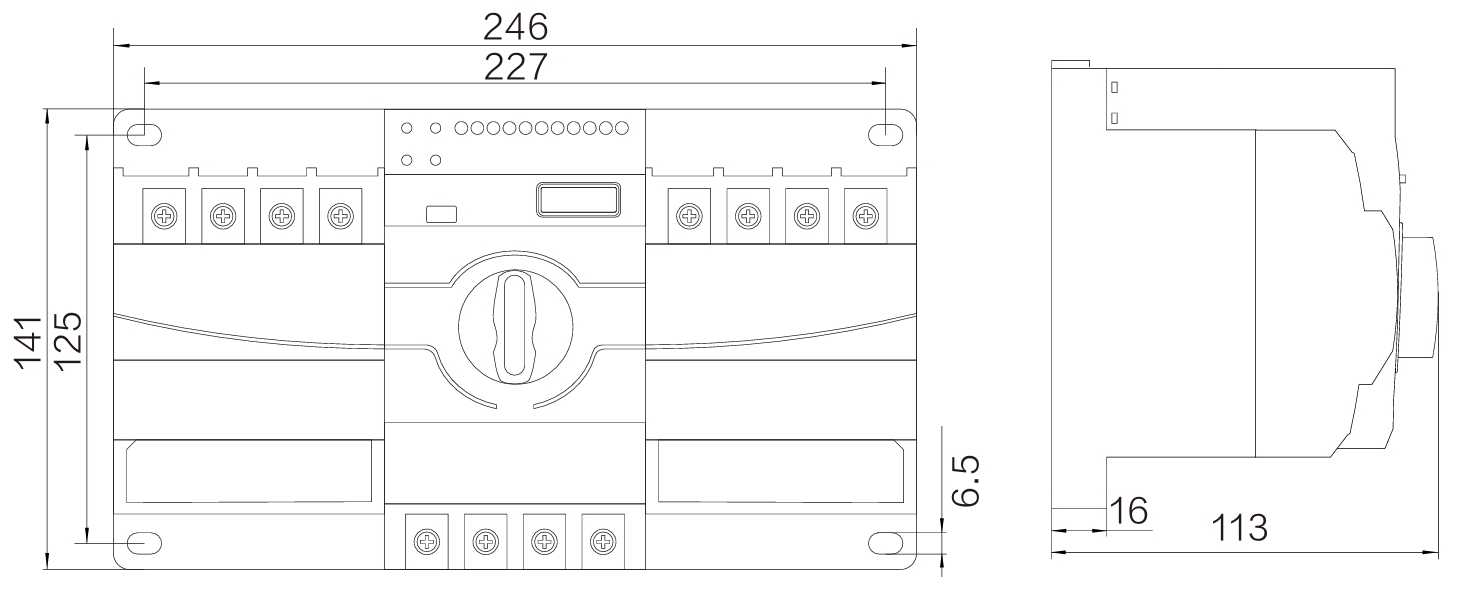

Outline and installation dimensions
