Intelligent dual power automatic switching system for AC 50 / 60Hz, rated working voltage 400V, rated current up to 630A dual power supply system, to achieve the common power supply (N) with automatic standby power switch (R) between the (also can be used to manually switch).

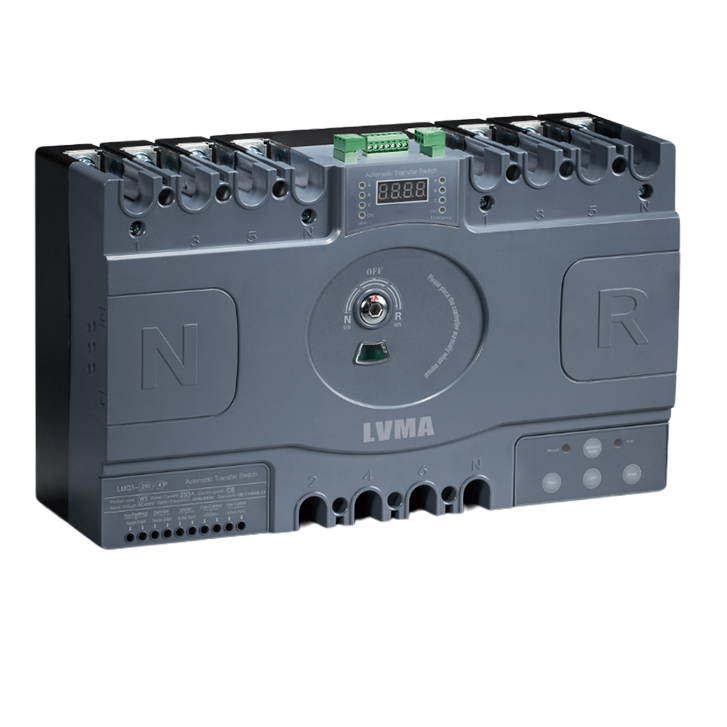

LMQ3-W1 intelligent automatic shift switch intelligent dual power automatic switching system for AC 50/60Hz, rated working voltage 400V, rated current 63 ~ 630A dual power system, switch between common power (N) and automatic standby power (R)(can also be used for manual switching) . It is composed of integrated controller and intelligent device. The main body is composed of two groups of circuit breakers installed in the switch cabinet to realize two groups of input terminals and one single-chip dual-power conversion switch for output.

The intelligent device is composed of special forward and backward motors, circuit breakers and operating mechanism. The system has the function of electromechanical double interlock protection, which provides a safe and reliable guarantee for power supply.

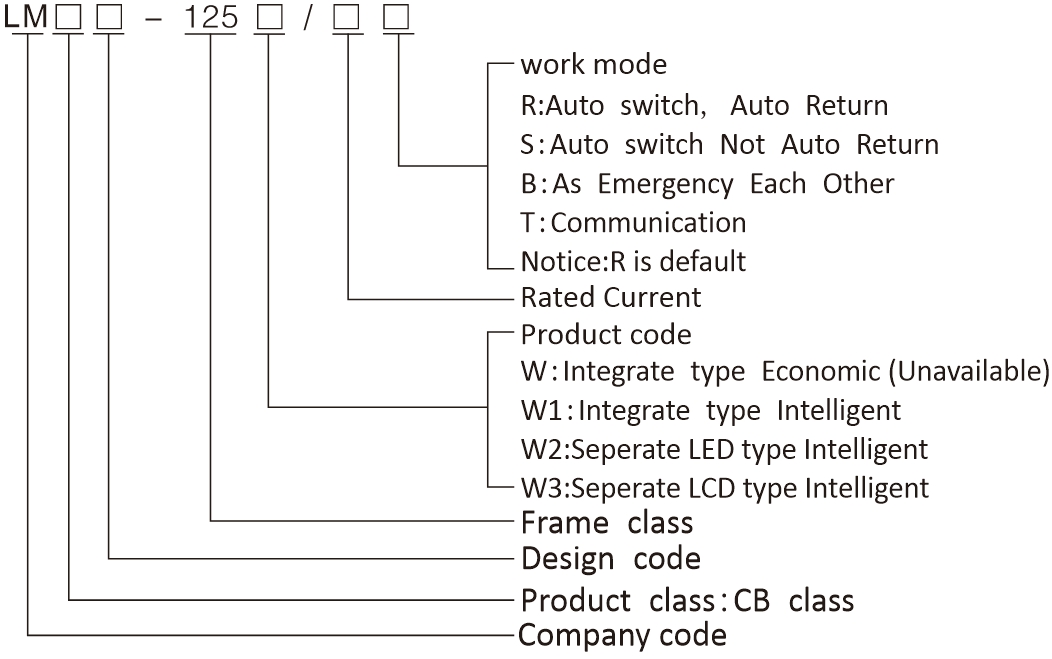

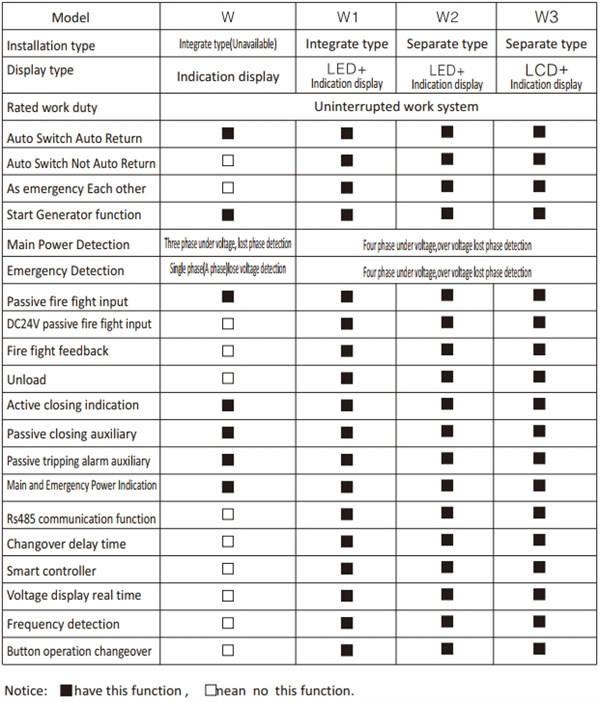

a. CB class ATS come true Two input One output

b. Removale Auxiliary alarm and closing auxiliary

c. Complete function,SMART

d. Parameter can set,remote communication operation

e. Full bakelite shell, high safety factor, external zero fly arc

f. The compact design of anti-jamming performance

g. Small size, appearance patent products, with isolation.

h. Multi-function operating handle, the operating handle can be used in change over, also used to fasten the screw, easy installation.

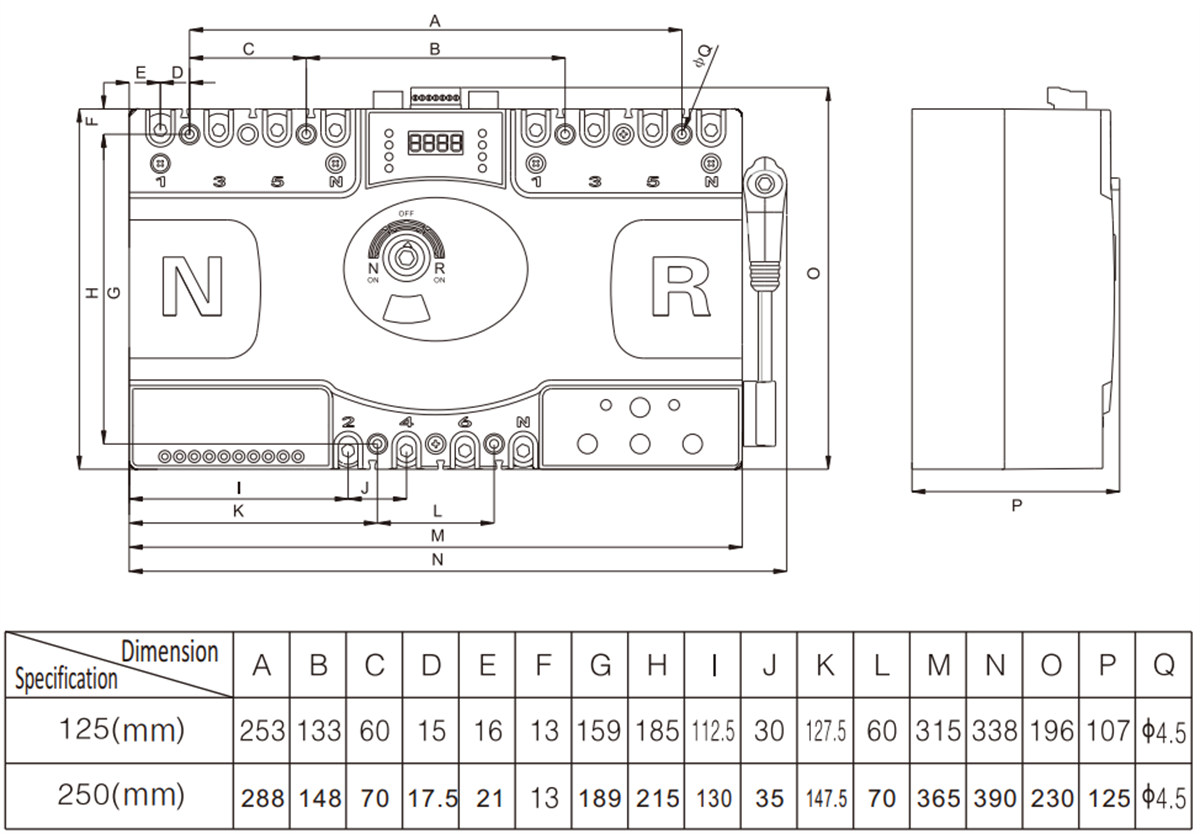

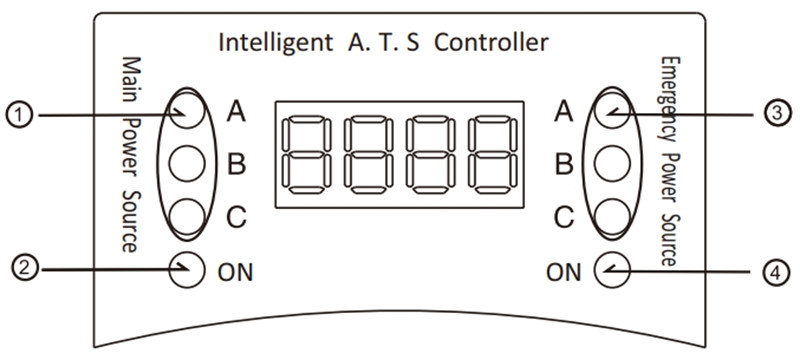

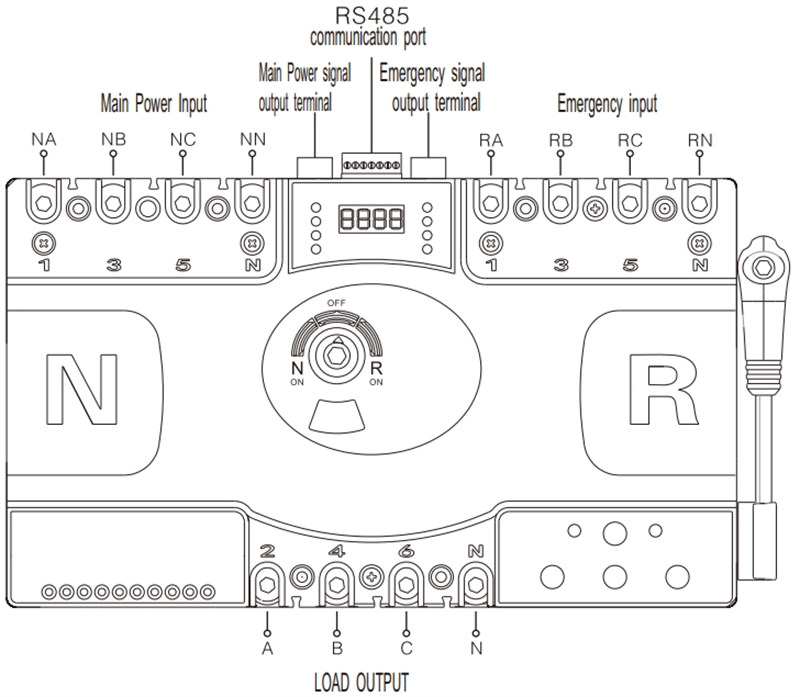

1.Main Power A、B、C three phase indication light:When Main Power A、B、C three

phase voltage in controller set range lightening.

2.Main Power ON indication light:When main power circuit breaker in closing lightening.

3.Emergency Power A、B、C three phase indication light:when main power A、B、C

three phase voltage in controller set range lightening.

4.Emergency Power ON indication light:When emergency power circuit breaker in

closing lightening.

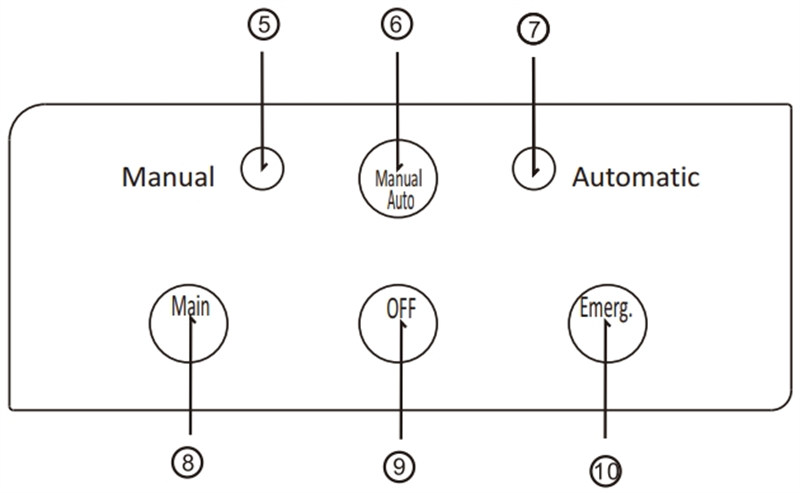

5.Manual work status indication:Under manual work status,user can through keyboard to

control switch transfer.

6.Manual or Automatic work status transfer button: User through keyboard to choose

manual or automatic status.

7.Automatic work status indication:Auto work is lightening,meanwhile controler in seperately

detect voltage in main power and emergency power by automatically to finish switch transfer.

8.Manual status to cut to main power button.

9.Manual status to double off button.

10.Manual status cut to emergency power button.
