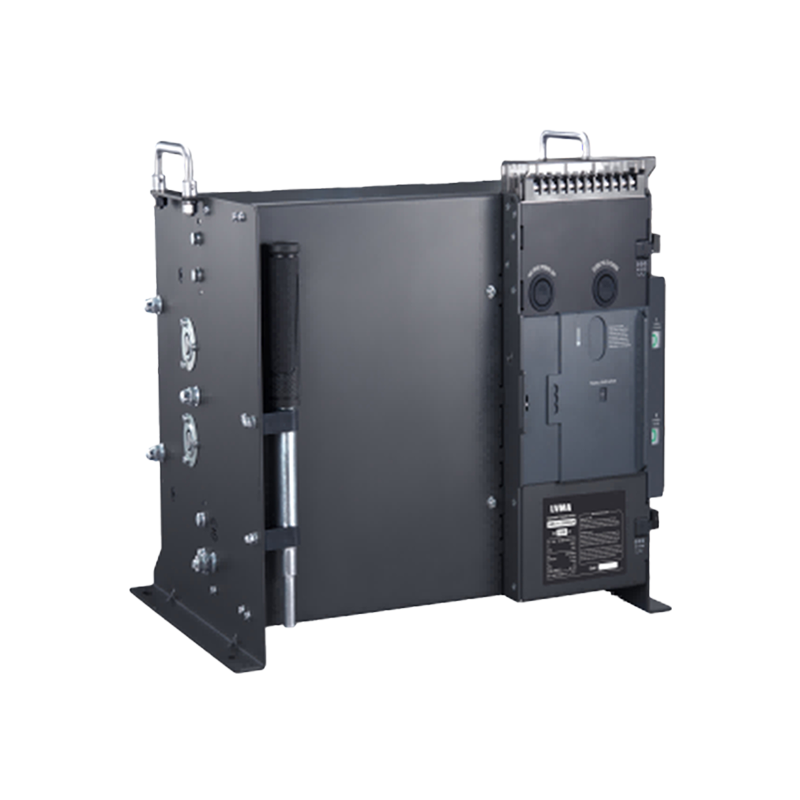

China LMCT1 Series ATS 2000G Automatic Transfer Switch - Top Suppliers & Reliable Factory
LMS1-LA Series Manual
LMS1-LA as our ingenuity research and development of a new generation of dual power automatic transfer switch, in the performance and technology to achieve a major breakthrough. The product provides 63A, 125A, 250A, 400A, 630A and other rated current specifications, whether it is the continuous operation of massive servers in data centers, or the uninterrupted power supply of life support equipment in hospital ICU wards, the stable operation of elevator and fire fighting system in high-rise buildings can fully meet the power demand in different scenarios.
Its switching speed can be called industry-leading, switching time only 10ms-50ms, with millisecond response speed to complete power conversion. In the data center, the LMS1-LA automatic transfer switch can switch to the standby power supply in a very short period of time in the face of sudden power failure, avoiding data loss and system collapse caused by momentary power failure; in the hospital environment, the LMS1-LA automatic transfer switch can switch to the standby power supply in a very short period of time, millisecond-level power switching can guarantee the stable operation of precision instruments and first-aid equipment in operating rooms, and escort the safety of patients. When applied to high-rise buildings, fast power changeover ensures smooth parking of elevators, normal operation of fire fighting systems and improved building Factor of safety.
The transfer switch is composed of a high performance excitation contactor and an intelligent controller. When working, the electromagnetic coil produces a strong and stable attraction to drive the switching action to ensure the instant completion of power switching. This feature not only effectively guarantees the rapid switching of the power supply when the equipment is powered off, but also realizes the seamless connection of the power supply, which provides a reliable and solid power guarantee for the equipment with strict requirements for power continuity.
Model Description
⚠ Notice: The standard controller comes with grid-generator start-stop ports. Communication is optional. 3N represents neutral line overlap transfer.
Working Environment
- Ambient air temperature: The ambient temperature ranges from -5℃ to +40℃, with an average temperature not exceeding +35℃ for 24 hours. Users should consult the manufacturer if the ambient air temperature exceeds +40℃ or falls below -5℃.
- The highest temperature of atmospheric humidity: At +40℃, the relative humidity does not exceed 50%, with a monthly maximum relative humidity of 90%. It tolerates the effects of maritime damp air. Higher relative humidity is permissible at lower temperatures. Special measures should be taken for condensation occasionally produced by temperature changes.
- Installation altitude: The installation site's altitude does not exceed 2000 meters. For higher altitudes, consider decreased dielectric strength and cooling effect of the air and consult the manufacturer.
- Pollution level: The environmental pollution level at the installation site is Level 3.
- Installation category: Installation Category IV.
- Installation inclination: The product is fixedly installed in the cabinet with a maximum inclination of ±15°.
- Arcing distance: The arcing distance at AC400V is ≥60mm.
Main Technical Parameters
| Model | LMCT1-2000G | ||||
| Insulation voltage | AC 1000V | ||||
| Rated voltage | AC380V, AC400V, AC415V | ||||
| Rated current | 800A | 1250A | 2000A | ||
| Rated impulse withstand voltage | 12kV | ||||
| Kind of throw | Double throw | ||||
| Wiring method | Behind horizontal wiring | ||||
| Short-time resistance current | 120kA | ||||
| Rated Control Power Current | 16A | ||||
| Transfer time | A Power | Input | 80ms | 80ms | 100ms |
| Break | 30ms | 30ms | 30ms | ||
| B Power | Input | 100ms | 100ms | 120ms | |
| Break | 30ms | 30ms | 30ms | ||
| Electrical Life | 3000 | ||||
| Mechanical Life | 7000 | ||||
| Use type | AC-33B | ||||
| Accessories | Handle manual, electric conversion, controller automatic conversion | ||||
Structure and Mounting Dimensions
Frequently Asked Questions
Q What is the rated current range of the LMCT1-2000G transfer switch?
The LMCT1-2000G supports three rated current options: 800A, 1250A, and 2000A, making it suitable for a wide range of industrial and commercial power distribution applications.
Q What voltages is the LMCT1-2000G compatible with?
The LMCT1-2000G is compatible with rated voltages of AC380V, AC400V, and AC415V, with an insulation voltage of AC 1000V and a rated impulse withstand voltage of 12kV.
Q What is the transfer time for the LMCT1-2000G when switching between power sources?
For A Power, the input transfer time is 80ms (800A/1250A) or 100ms (2000A), with a break time of 30ms. For B Power, the input transfer time is 100ms (800A/1250A) or 120ms (2000A), also with a break time of 30ms.
Q What are the electrical and mechanical life ratings of the LMCT1-2000G?
The LMCT1-2000G offers an electrical life of 3,000 operations and a mechanical life of 7,000 operations, ensuring long-term reliability in demanding environments.
Q What installation altitude is permitted for the LMCT1-2000G?
The standard installation altitude should not exceed 2,000 meters. For installations at higher altitudes, the reduced dielectric strength and air cooling effect must be considered, and users should consult the manufacturer for guidance.
Q What accessories and control options are available for the LMCT1-2000G?
The LMCT1-2000G supports handle manual operation, electric conversion, and controller automatic conversion. The standard controller includes grid-generator start-stop ports, with optional communication capability. 3N configuration represents neutral line overlap transfer.
