These days, with the rapid growth of the electric and renewable energy sectors, installing a 125 Amp Transfer Switch the right way is more important than ever. It’s all about ensuring a smooth switch between the utility grid and backup generators, so your power stays consistent without any hiccups. If you’ve been keeping an eye on industry trends, you know the global transfer switch market is expected to hit around $1.5 billion by 2026 — mainly because people want reliable power solutions, especially for critical applications. Leading the charge in this space is Zhejiang LVMA Electric Co., Ltd. They've really stepped up by blending innovation with a strong worldwide presence, making high-quality transfer switches that meet the toughest standards. This step-by-step guide is here to help technicians and electrical pros get the job done right — safely and efficiently — so they can keep homes and businesses powered up without a hitch.
Tools and Materials Needed for Installing a 125 Amp Transfer Switch
Getting ready to install a 125 Amp transfer switch? It's pretty important to have the right tools and materials on hand — that really makes the whole process smoother and safer. First off, you'll want a good screwdriver set—both flathead and Phillips—to help tighten things up, like the switch itself and the cover on your electrical panel. A wire stripper is also a must-have; it makes prepping your wires way easier and helps ensure solid connections. If you've got a drill, grabbing the right bits can really come in handy since it makes mounting the switch to the wall or panel a lot less of a hassle. And don't forget safety gear—gloves and goggles are a good idea, especially when working with electricity to keep yourself protected.
As for materials, you'll need a 125 Amp transfer switch. You can pick one up from your local electrical supply store or shop online—just make sure it fits your area’s codes and standards. You’ll also need various wires, usually in a 4-wire setup, to connect everything from the switch to your main electrical panel. Plus, don't skimp on connectors and conduit—they help keep everything protected and organized. Putting a little effort into gathering the right tools and materials upfront really pays off. It makes the whole install safer and way more efficient, so you’re not stuck scratching your head later on.
Installation Time for 125 Amp Transfer Switch by Step
Safety Precautions Before Starting the Installation Process
Before you get started with installing that 125 amp transfer switch, it’s really important to keep safety in mind — both for you and to keep your home safe. The folks over at the National Fire Protection Association (NFPA) actually warn that if you don’t install these switches properly, it can lead to some serious hazards like electrocution or even electrical fires. So, make sure you’re wearing the right safety gear, like insulated gloves and safety goggles, whenever you’re working on electrical parts. Also, try to keep your workspace dry — no wet hands or tools, okay? It might seem simple, but it really cuts down on the risk of shocks.
Oh, and don’t forget to check out the National Electric Code (NEC) guidelines before you start planning your install. These codes set the safety standards you need to follow, like making sure your system’s properly grounded and that the circuit breakers can handle the load. Did you know that around 30% of home electrical fires come from faulty connections or circuits that are overloaded? So, it’s super important to double-check your electrical panel and ensure your system can handle everything before you dive in. Stick to these safety tips, and you’ll set yourself up for a smooth, safe install — and peace of mind, too.
Step-by-Step Guide to Mounting the Transfer Switch
When you're installing a 125 Amp transfer switch, getting the mounting right is super important—not just for making sure it works well, but also for safety reasons. First off, pick a good spot for it, ideally within about 10 feet of your main electrical panel. The NFPA recommends keeping it this close to reduce voltage drops and make everything run more smoothly. Also, make sure the wall or surface can handle the weight — most transfer switches weigh between 30 and 50 pounds, depending on the model, so you don’t want it to end up hanging off a wobbly wall.
Before you start drilling or screwing anything in, double-check that you've got all the tools and parts you’ll need—things like a drill, a level, and the right electrical cables. Use the level to line everything up neatly; trust me, it not only looks better but also helps keep internal parts functioning properly. Oh, and before you go any further, take a quick moment to review your local codes and regulations—skipping this step can lead to unsafe setups or even fines, which no one wants.
When it’s time to secure the switch, use screws that resist rust and corrosion—these are way better in the long run. And if you can, mount it at eye level. That makes future maintenance a whole lot easier and aligns with what the Electrical Safety Foundation International suggests about keeping electrical setups accessible. Follow these simple tips, and you’ll have that transfer switch installed correctly, ready to keep your home safe when you need it most.
How to Efficiently Install a 125 Amp Transfer Switch: A Step-by-Step Guide with Industry Insights
| Step Number | Action | Details | Safety Tips |
| 1 | Gather Tools & Materials | Transfer switch, circuit breakers, cables, connectors, power drill, screwdriver, voltage tester. | Always use insulated tools to prevent electrical shock. |
| 2 | Turn Off Power | Locate the main circuit breaker and turn off the power to ensure safety during installation. | Verify with a voltage tester that power is off before starting work. |
| 3 | Mount the Transfer Switch | Choose a suitable location near the main panel to mount the transfer switch securely. | Ensure the area is dry and free of any debris to prevent hazards. |
| 4 | Connect Wiring | Follow manufacturer instructions to connect the wires from the transfer switch to the main panel and generator. | Use protective gloves while handling wiring to avoid shock. |
| 5 | Test the System | Restore power and run a test with the generator to ensure everything is functioning properly. | Keep a fire extinguisher nearby while testing the system. |
| 6 | Finalize Installation | Secure all panels and ensure all wires are protected and tidy. | Inspect the entire setup for any loose connections or potential hazards. |
Wiring the Transfer Switch for Optimal Performance
wiring a 125 Amp transfer switch is kind of a big deal — it really affects how well your backup power system works and how efficient it is. The folks over at the National Electrical Manufacturers Association (NEMA) warn that if you don’t wire things right, you could be losing up to 10% of your power, especially in a home setting. So, it’s super important to follow the proper wiring steps to ensure everything runs smoothly and safely.
When you're setting up the transfer switch, don’t forget to stick to the National Electrical Code (NEC) guidelines. They recommend using the right wire sizes and circuit protection devices. For a 125 Amp switch, generally speaking, copper wires of at least 2 AWG are the way to go — this helps cut down on voltage drops and keeps things safe. And yep, using a dedicated circuit breaker with the correct amperage rating is key to avoiding overloads. According to reports from the Electrical Safety Foundation International (ESFI), homes with properly installed transfer switches and the right wiring are about 50% less likely to have power-related issues. That just goes to show how crucial good installation practices really are — they make your system safer and more efficient in the end.
Testing the Transfer Switch to Ensure Proper Functionality
Honestly, testing your transfer switch is super important before you find yourself in a real power outage. First off, give it a good look-over—make sure all the electrical connections are tight and intact. Keep an eye out for any signs of damage, loose wires, or anything that seems off. Once that’s all visually sorted out, it’s a smart move to mimic an outage: turn off the main power and see if the switch properly kicks in and transfers power over to your generator. It’s like a little dress rehearsal!
A few tips if you’re doing this yourself—grab a multimeter and double-check the voltage coming from your generator. It should match what the transfer switch needs. And don’t just test it once; periodic testing while the power’s on isn’t a bad idea either. That way, you catch any sneaky issues early, and you’re not caught off guard when something actually goes wrong. Also, listen up for any unusual sounds or indicators — they might be signs of trouble. If something feels weird or out of the ordinary, it’s always best to chat with a pro.
Getting to know your specific transfer switch model can really help, too. Each one might have its own quirks or special features. Make sure you’re following the manufacturer’s instructions for routine checks—proper maintenance really does extend the life and performance of your system. Doing these regular tests and staying a bit informed about new updates or tech can make a big difference. All in all, staying proactive keeps your energy supply reliable and puts you in better shape to handle unexpected outages without too much stress.
Common Problems and Troubleshooting Tips for Transfer Switch Installation
When you're installing a 125 Amp transfer switch, it's super important to be aware of some common issues that can pop up along the way. According to a 2022 report by the National Electrical Contractors Association (NECA), nearly 30% of installation problems come from miscalculating your load demands. If you don't get a clear picture of how much power you're actually using, you risk overloads or wasting generator capacity — which isn’t ideal since it could shorten your generator’s life or affect its performance. So, taking the time to do accurate load calculations before you get started really does make a difference.
Another thing to watch out for, as the report pointed out, is wiring mistakes. About a quarter of transfer switch failures happen because of poor wiring practices. Whether it’s connections that aren’t lined up right or wires that are the wrong size, these issues can cause overheating and make the whole system less reliable. It’s a good idea to stick to the National Electrical Code (NEC) standards and, honestly, it’s best to bring in a licensed electrician to double-check your work. Doing these little things can go a long way in keeping your setup safe, reliable, and working smoothly without any unexpected hiccups.
Maximizing Power Reliability with LMS1-NJT Series 63A Automatic Transfer Switch ATS: Key Benefits and Features

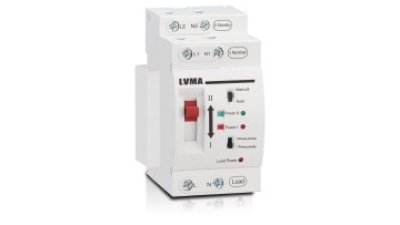

The LMS1-NJT Series 63A Automatic Transfer Switch (ATS) stands out as a cutting-edge solution for maximizing power reliability in various applications. With a rated voltage of AC 220V and a current range of 10 to 63A, this ATS is designed to seamlessly manage power distribution while ensuring a stable and uninterrupted flow of electricity. Its 2-pole configuration and CE, CB, and CCC certifications affirm its compliance with international standards, particularly IEC 60947-6-1, making it a trusted choice for professionals seeking reliability.
One of the key benefits of the LMS1-NJT is its excitation type drive mode, which enhances its performance and efficiency. This feature allows for a quick and reliable switch between power sources, ensuring that your critical systems remain operational during outages or fluctuations in power supply. The PC Class designation further indicates its suitability for a wide range of applications, from industrial settings to commercial facilities. For inquiries or more information about the LMS1-NJT series, potential customers can reach out via email at sale@lvma-ele.com, ensuring assistance for all their power transfer needs.
FAQS
: The ideal location for a transfer switch is within 10 feet of the main electrical panel to minimize voltage drop and enhance efficiency.
Necessary tools for installing a transfer switch include a drill, level, and proper electrical cables.
Use a level to ensure the transfer switch is properly aligned, which aids in aesthetics and ensures internal components function correctly.
Corrosion-resistant screws should be used to secure the transfer switch for durability and safety.
To test the transfer switch, turn off the main power supply to simulate an outage and observe if the switch transfers power to the generator seamlessly.
During the visual inspection, check all electrical connections for any signs of damage or loose wires.
It is wise to periodically test the transfer switch even when the power is on to ensure all components are functioning correctly.
A common issue is incorrect load calculations, which can lead to circuit overloads or underutilization of the generator.
Follow the National Electrical Code (NEC) guidelines and engage a certified electrician to verify your installation.
Familiarizing yourself with your specific transfer switch model provides insights into its unique operational features and aids in proper maintenance.
Conclusion
Thinking about installing a 125 Amp Transfer Switch? It’s actually pretty important if you want to keep your power running smoothly, especially with how fast things are moving in electric and renewable energy. This guide is here to walk you through everything — from the tools and materials you’ll need, to safety tips to keep in mind so you stay safe and the install goes smoothly. The step-by-step instructions for mounting and wiring are designed to help you get it right, and the testing part is all about making sure it works properly before you call it done.
Plus, I’ve thrown in some handy troubleshooting tips for those hiccups that might pop up along the way. And with the support of industry pros like Zhejiang LVMA Electric Co., Ltd., you can feel pretty confident about installing your transfer switch. It’s a solid move to boost your energy setup and stay aligned with the latest tech trends. So, don’t worry — you’ve got this!
