ATS Cabinet - Automatic Transfer Switch

Our company roots in the field of power equipment, focusing on dual power supply and automatic control cabinet production assembly. From the screening of raw materials to finished products, all aspects of strict adherence to high standards. Technical team experienced, with advanced equipment, accurate control of quality. By virtue of professionalism and ingenuity, continue to create high-quality products for customers to build a solid guarantee for the safe and stable operation of electricity.

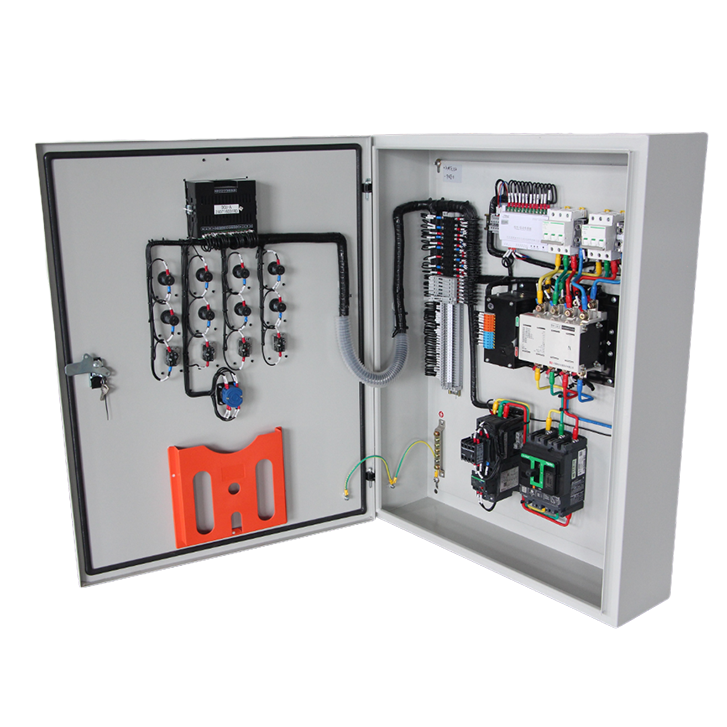

Made with insMind-GL 250A -1 拷贝 3
product details

Configuration of dual power supply cabinet

    1.Automatic Transfer Switch (ATS) for Dual Power Supplies:
    Commonly, there are PC type and CB type. The PC type transfer switch features a simple structure and fast switching speed, making it suitable for scenarios with high requirements for switching time. The CB type transfer switch has functions of overload and short-circuit protection, and it is applicable to situations where the load needs to be protected.
    2.Control Circuit and Controller:
    The control circuit is responsible for monitoring the power supply status and controlling the operation of the transfer switch. The controller is the core component of the dual-power supply switch, usually adopting microprocessor technology, which has functions of high-precision measurement of power supply parameters and flexible parameter setting.
    3.Protection Devices
    1.Overcurrent Protection Device: When the current in the circuit exceeds the set value, the overcurrent protection device will automatically cut off the circuit to prevent equipment damage due to overcurrent.
    2.Short-circuit Protection Device: When a short-circuit fault occurs in the circuit, the short-circuit protection device will act quickly to cut off the circuit and protect the safety of the equipment and the circuit.
    3.Under-voltage Protection Device: When the power supply voltage is lower than the set value, the under-voltage protection device will act to prevent the equipment from malfunctioning or being damaged due to under-voltage.
    4.Current Transformers (CTs) and Voltage Transformers (VTs):
    Current transformers are used to measure the current in the circuit, and voltage transformers are used to measure the voltage of the power supply. They transmit the measured current and voltage signals to the controller and the protection device for monitoring and protection purposes.
    5.Circuit Breakers:
    The input power supply circuit breaker and the output power supply circuit breaker can automatically cut off the circuit when faults such as overload and short-circuit occur in the circuit, protecting the safety of the equipment and the circuit.
    6.Auxiliary Equipment
    1.Indicator Lights: Including the main power supply indicator light, standby power supply indicator light, main power switch-on indicator light, standby power switch-on indicator light, etc. Different on/off states reflect the power supply and working conditions of the power supply, making it convenient for personnel to intuitively understand the operating status of the device.
    2.Operation Buttons: Used for manually operating the switching of the dual-power supply transfer switch, as well as for debugging and maintaining the equipment.
    3.Relays: Used to achieve the conversion and amplification of control signals and to perform logical control of the circuit.
