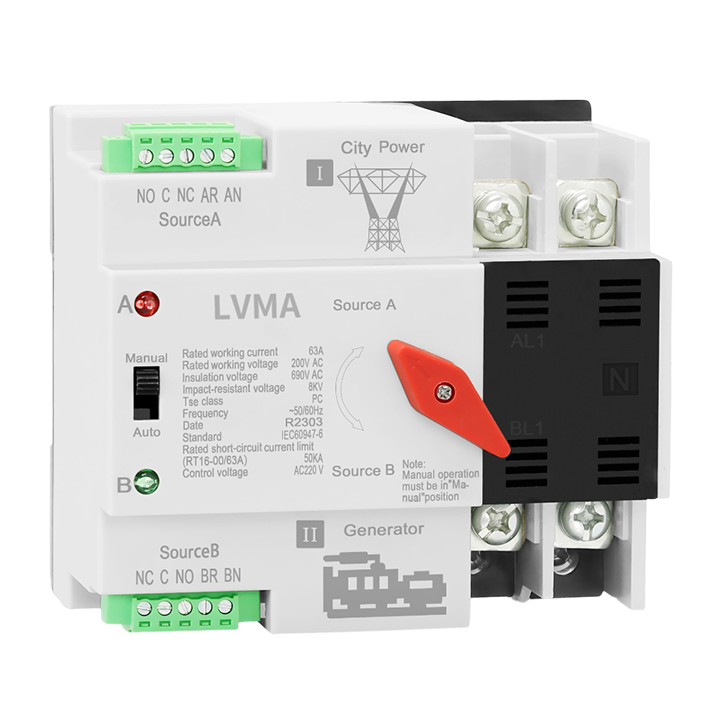

ATS100A,Automatic Transfer Switch 2P 3P 4P
LMQ4-100X
ATS(Automatic Transfer Switch Equipment) mainly is composed of switch body and intelligent transferring controller. It can transfer reliably between Normal power and Reserve power automatically when there is problem with any of them, meanwhile, it can monitor and protect the two power system by over voltage, under voltage, phase loss, short circuit, overload, the Reserve power can be Utility, Generator Power, UPS power, PV panel etc, and the main application can be hospital, shopping mall, bank, mechanical industry, metallurgy, high building, military facilities and fire control etc. places where the power should not be interrupted.
Main Technical Parameters
|
Model |
LMQ4-100X |
|||||||||
|
Rated current le A |
10 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Insulation voltage Ui |
AC 690V |
|||||||||
|
Rated voltage Ue |
2P:AC230V 3P:AC400V 4P:AC400V |
|||||||||
|
Grade |
Grade PC:able to male and withstand , not to break short-circuitcurrent |
|||||||||
|
Use category |
AC -33iB |
|||||||||
|
Pole |
2P |
3P |
4P |
|||||||
|
Weight ( kg ) |
0.62 |
0.72 |
0.91 |
|||||||
|
Life |
Electrial :2000times; Mechanical :5000times |
|||||||||
|
Rated conditional short - circuit current lq |
50kA |
|||||||||
|
SCPD ( fuse ) |
RT16-00-63A |
|||||||||
|
Rated impulse withstand voltage |
8kV |
|||||||||
|
Control circuit |
Rated control voltage Us :AC220V,50Hz Correct working condition 85%Us-110%Us |
|||||||||
|
Auxiliary circuit |
AC220V/AC110V50/60HZ |
|||||||||
|
Contact transter time |
<50ms |
|||||||||
|
Operating transfer time |
<50ms |
|||||||||
|
Return transfer time |
<50ms |
|||||||||
|
Off - time |
<50ms |
|||||||||
|
Temperature range |
-5'C ~+40'C average temperature not more than 35'C in 24 hours |
|||||||||

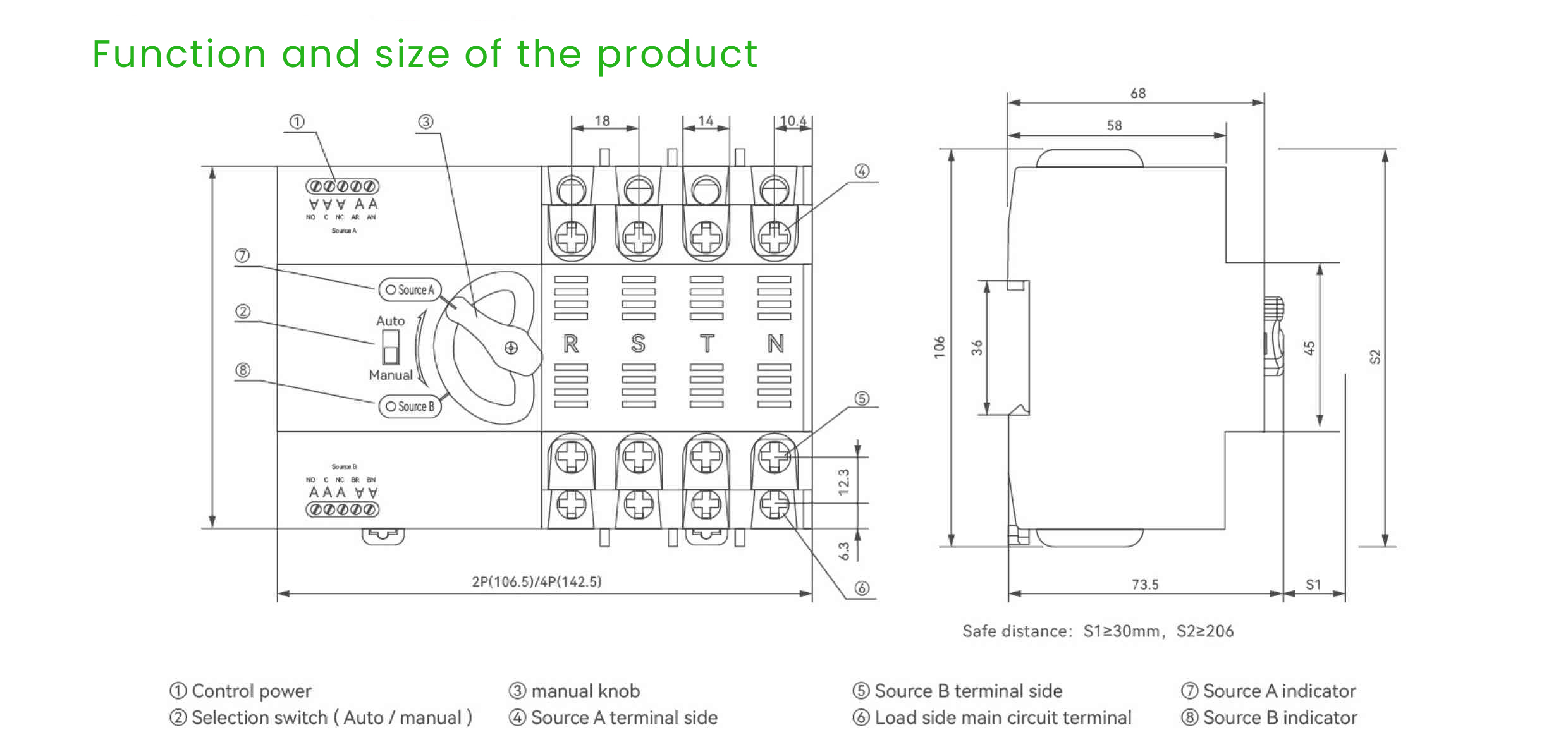

Structure and Mounting
